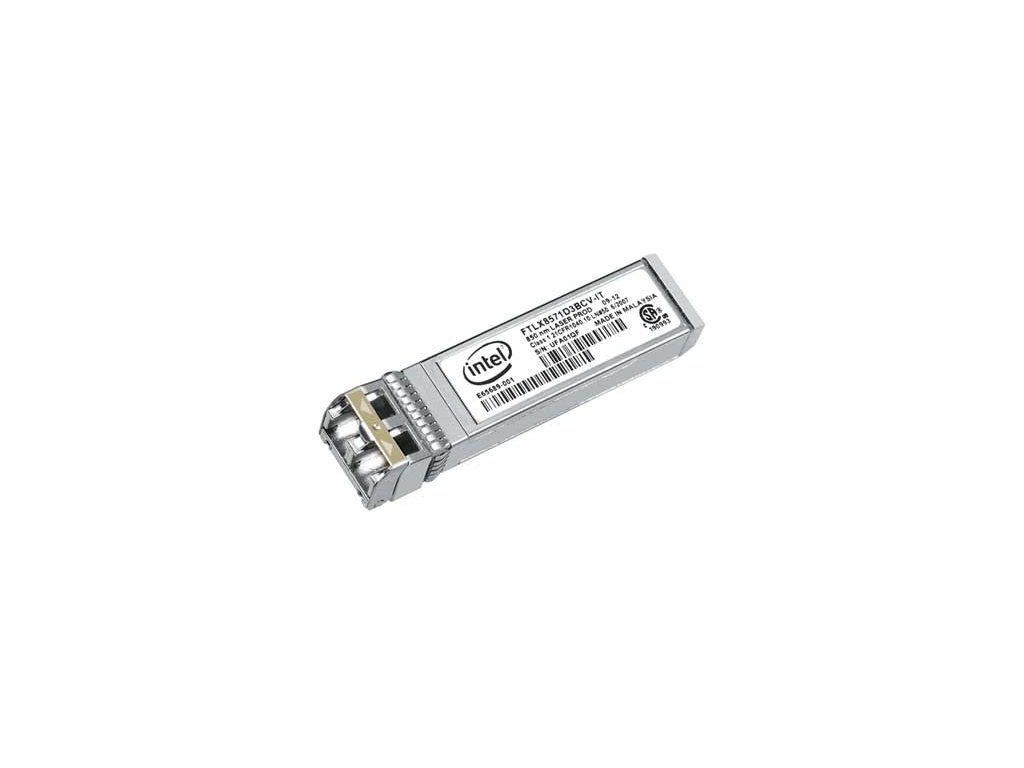

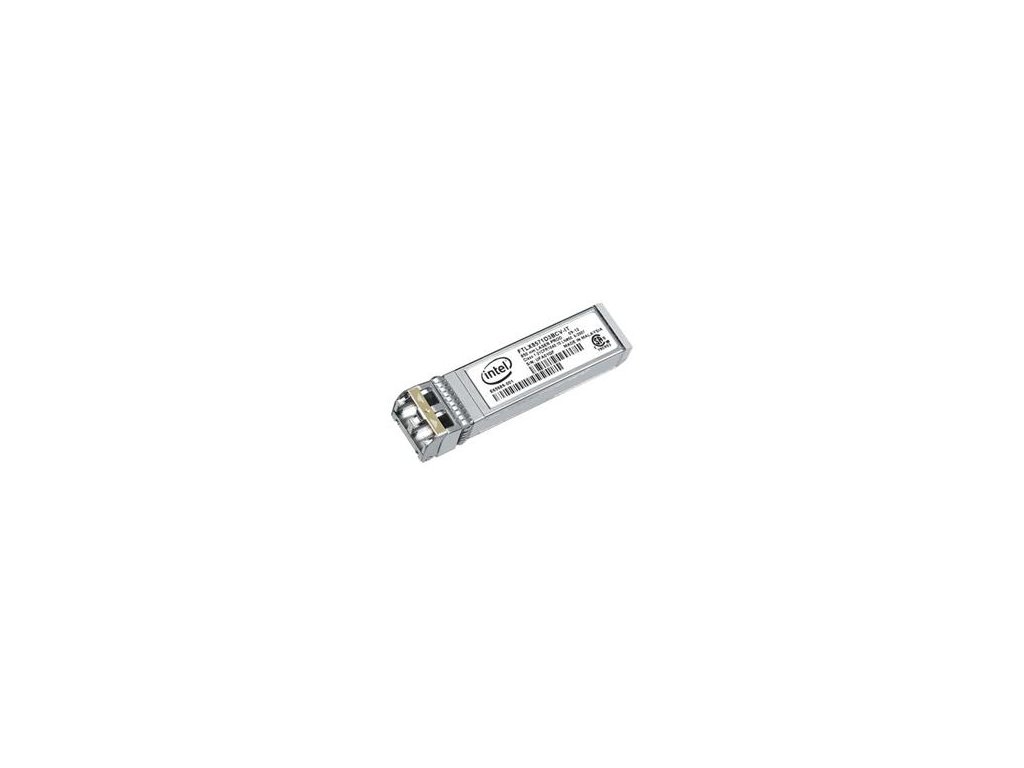

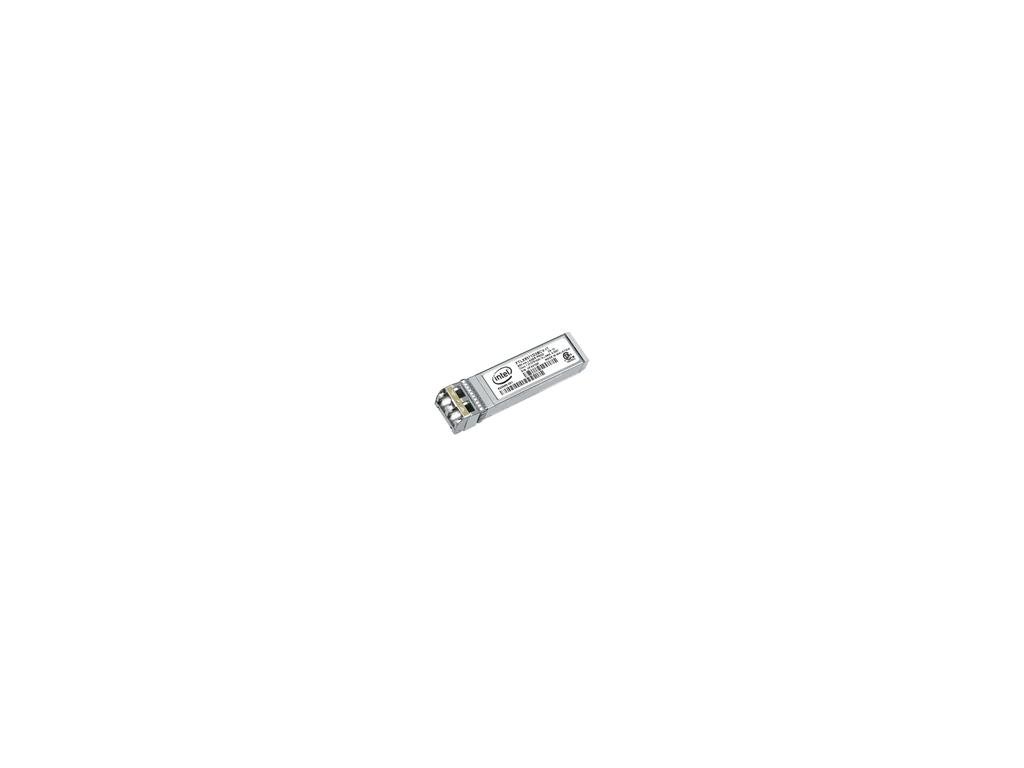

Supermicro Intel® Ethernet SFP+ SR Optics, retail unit

Detailní popis produktu

Kód: SRAOCE10GSFPSR-A1A
P/N: AOC-E10GSFPSR
EAN: 5032037046664

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Specifications ?






Add-on Card




SFP+ SR Optics for

10G Ethernet Products
Supermicro AOC-E10GSFPSR



Summary


The Supermicro AOC-E10GSFPSR is a flexible 10Gb Ethernet SFP+ transceiver. Supporting fiber optic cable for long distance connections, it is an attractive choice for those looking to extend the reach of their server systems beyond the standard 8m with copper cable. The AOC-E10GSFPSR will work with a wide variety of Supermicro products, from server systems to add-on cards and switches.

This product is only available through Supermicro.



Key Features

? Hot-pluggable SFP+ footprint

? Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates

? Power dissipation

? RoHS 6/6 compliant (lead free)

? Commercial temperature range 0°C to 70°C

? Single 3.3 Vdc power supply

? Max. link length 300m on 2000MHz-km MMF

? Ucooled 850nm VCSEL laser

? Receiver limiting electrical interface

? Duplex LC connector

? Built-in digital diagnostic functions






Compatibility

Add-on Cards AOC-STGN-i2S, AOC-STGN-i1S, AOC-STG-i4S, AOC-STG-b4S, AOC-CTG-i1S, AOC-CTG-i2S, AOC-PTG-i1S, AOC-MTGN-i2S, AOC-MTG-i4S
Switches SSE-G24-TG4, SSE-G2252, SSE-G2252P, SSE-X24S, SSE-X24SR, SSE-X3348S, SSE-X3348SR, SSE-X3648S, SSE-X3648SR, SSE-G3648B, SSE-X3648BR, SBM-GEM-X2C+, SBM-XEM-X10SM, SBM-XEM-002M, SBM-GEM-X3S+, SBM-XEM-F8X4SM
Motherboards X8DTU-6TF+
Servers 1026T-6RFT+, 6016T-6RFT+, 2026T-6RFT+, 6026T-6RFT+, 1027R-72RFTP, 6017R-72RFTP, 1027R-72BRFTP, 6027R-72RFTP+, 2027R-72RFTP+
Cable Fiber Optic SR (850nm) cable, LC to LC Multimode (Not Included)
AOC-E10GSFPSR Cable


Specifications

? Network Standards Physical Layer Interface:

- 1000BASE-SX 1G Ethernet

- 10GBASE-SR 10G Ethernet



? SFP+ Module Specifications:

- Electrical interface: SFF-8431 Rev. 4.1

- I2C Register interface: SFF-8472 Rev. 1.02

- Mechanical: SFF-8432 Rev. 5.0



? Supported Distance at 10G:

- 300m with 50µm Fiber: OM3 2000 MHz-km

- 82m with 50µm Fiber: OM2 500 MHz-km

- 66m with 50µm Fiber: 400 MHz-km

- 33m with 62.5µm Fiber: OM1 200 MHz-km

- 26m with 62.5µm Fiber: 160 MHz-km



? Supported Distance at 1G:

- >550m with 50µm Fiber: OM3 2000 MHz-km

- 550m with 50µm Fiber: OM2 500 MHz-km

- 500m with 50µm Fiber: 400 MHz-km

- 275m with 62.5µm Fiber: OM1 200 MHz-km

- 220m with 62.5µm Fiber: 160 MHz-km



? Environment Specifications:

- Operating temperature: 0°C to 70°C case temperature
