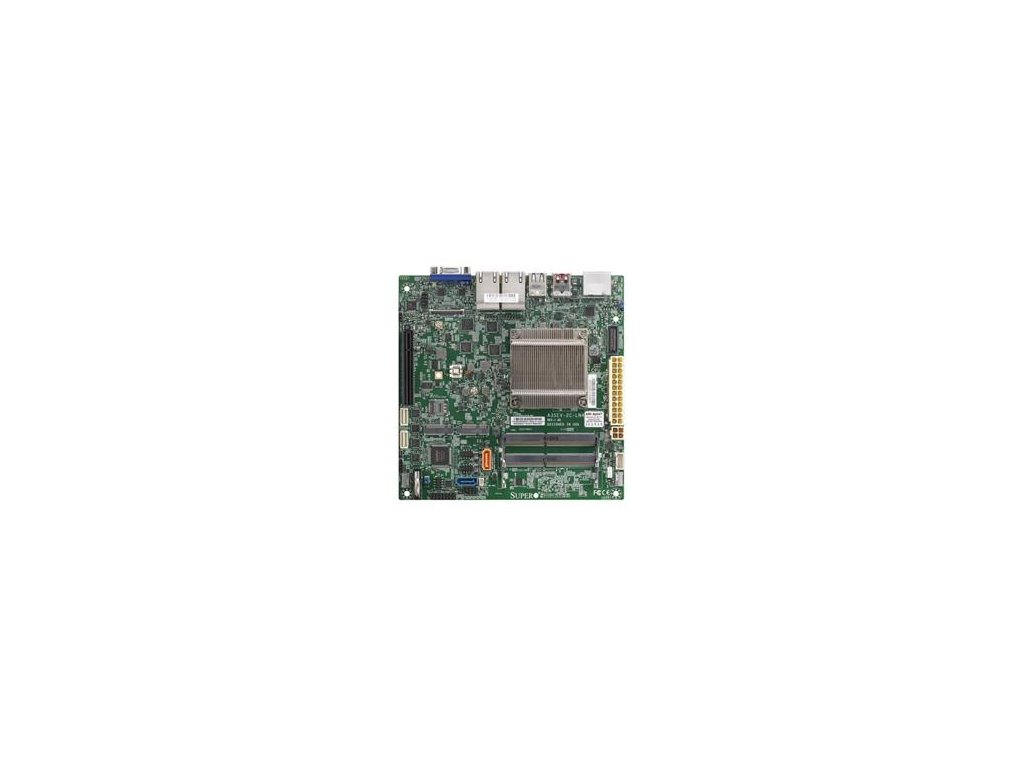

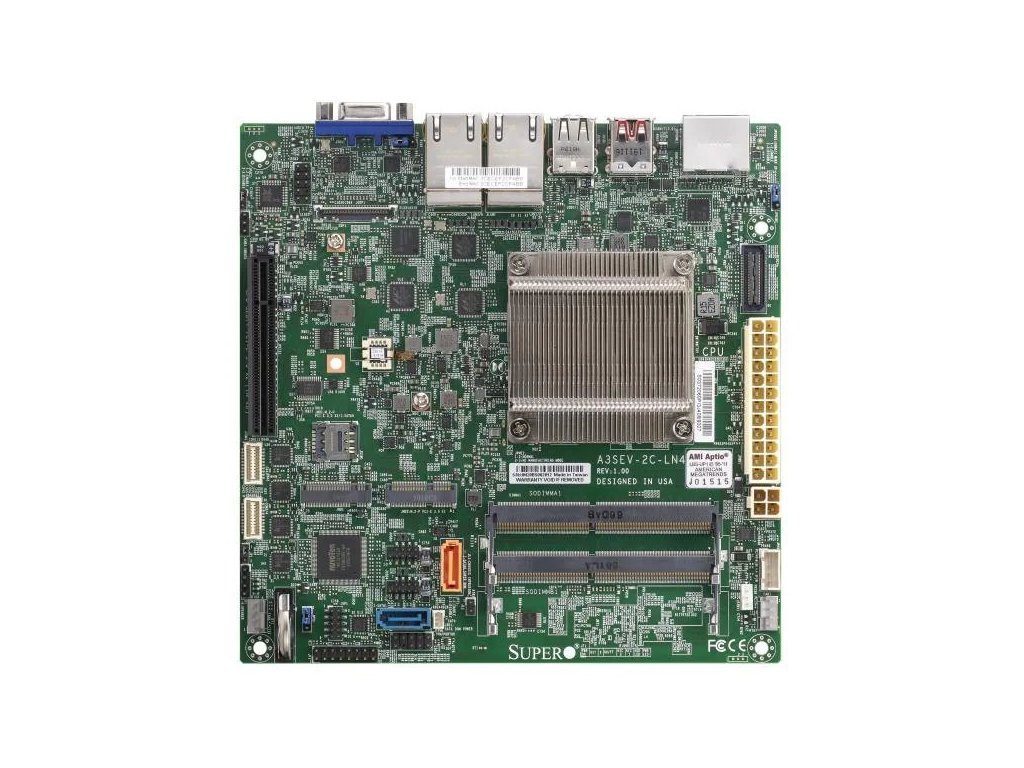

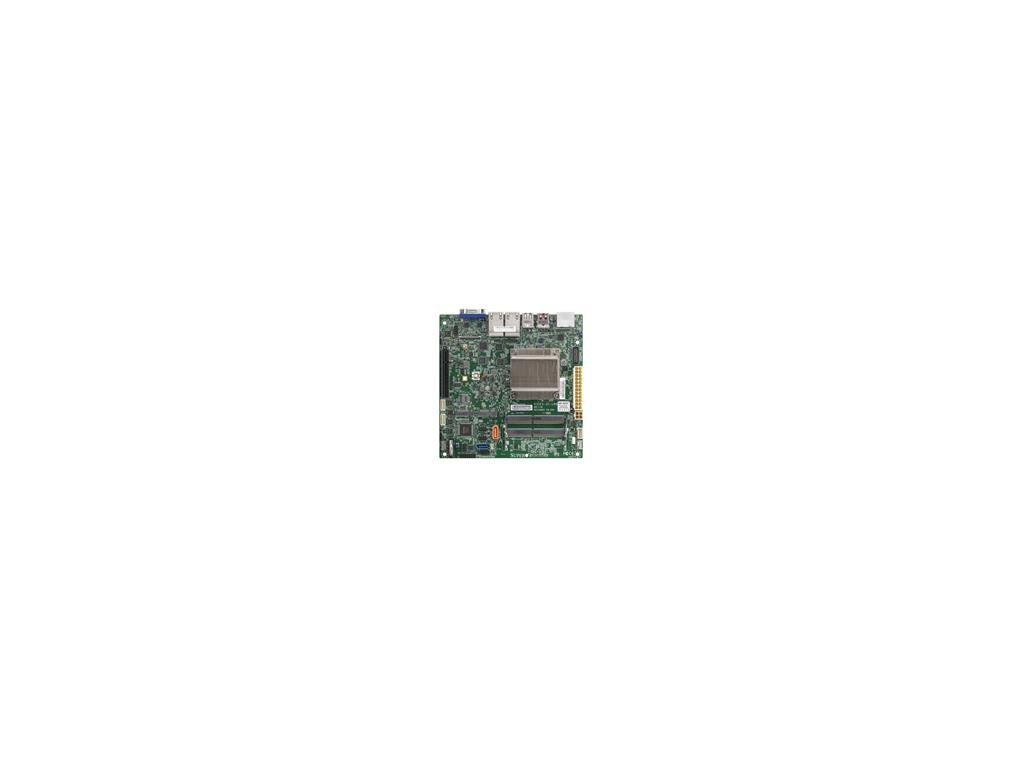

SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, bulk

Kód: SRMBDA3SEV4CLN4B-A1A

Neohodnoceno

Značka: Supermicro

8 394 Kč 6 937 Kč bez DPH

(1 ks)

Můžeme doručit do: 23.1.2026 Možnosti doručení

Detailní informace

Zobrazit všechny související produkty

Detailní popis produktu

Kód: SRMBDA3SEV4CLN4B-A1A
P/N: MBD-A3SEV-4C-LN4-B
EAN: 672042475094

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Key Features

Intel® Atom® Processor x6425E

Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP

Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots

1 PCIe 3.0 X2 (in x8 slot)

1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280

1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230

Single LAN with Intel® Ethernet Controller I210IT

ONLY i210 support PXE

3 LAN with 1GbE with Marvell® 88E1512

System on Chip

1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

Optimized Servers

SYS-E302-12E

Product SKUs

MBD-A3SEV-4C-LN4

Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)

Processor
CPU	Intel® Atom® Processor x6425E Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
Core	Up to 4 cores, 4 threads

System Memory
Memory Capacity	2 DIMM slots Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
Memory Type	3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB
DIMM Sizes	8GB, 16GB
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® HD Graphics port(s)
Network Controllers	Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE 3 LAN with 1GbE with Marvell® 88E1512

Input / Output
SATA	2 SATA3 (6Gbps) port(s)
LAN	4 RJ45 Gigabit Ethernet LAN ports
USB	2 USB 3.1 Gen2 port(s) (2 rear type A) 6 USB 2.0 port(s) (4 via header; 2 rear)
Video Output	1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)
Serial Port	4 COM Port(s) (4 header)
TPM	1 TPM Header & Chip both

Expansion Slots
PCIe	1 PCIe 3.0 X2 (in x8 slot)
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0 Form Factor: 3042/2280, 2230 Key: B-Key, E-Key

System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 or later UEFI 2.7 Plug and Play (PnP) SMBIOS 3.3 or later DMI 2.3 USB Keyboard support RTC (Real Time Clock) Wakeup

Management
Software	SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management, +12V DC Power Input

PC Health Monitoring
Voltage	VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED	Standby alert LED CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
FAN	Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication
Other Features	WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector

Operating Environment
Operating Temperature Range	-30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Parts (Bulk Package)
	Part Number	Qty	Description
I/O Cables	CBL-0044L •	1	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00058-0N	1	Standard I/O Shield for A2SAV with EMI Gasket

Standard Parts (Retail Package)
	Part Number	Qty	Description
I/O Cables	CBL-0044L •	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00058-0N	1	A3SEV standard 2U I/O Shield
QRG	MNL-2355-QRG	1	Motherboard Quick Reference Guide

Optional Parts
	Part Number	Qty	Description
1U I/O Shield	MCP-260-00068-0B	1	1U I/O Shield for A3SEV with EMI Gasket in CS 505/504
Audio Cable	CBL-OTHR-0985	1	Audio Cable 30cm
COM Port Cable	CBL-CDAT-0685	1	COM Cable 30cm
SATA Cables	CBL-0044L •	1	57.5CM SATA FLAT S-S PBF
SATA Power Cable	CBL-PWEX-0982	1	SATA Power Cable 25cm
USB Cable	CBL-CUSB-0983	1	USB2.0 cable 20cm
