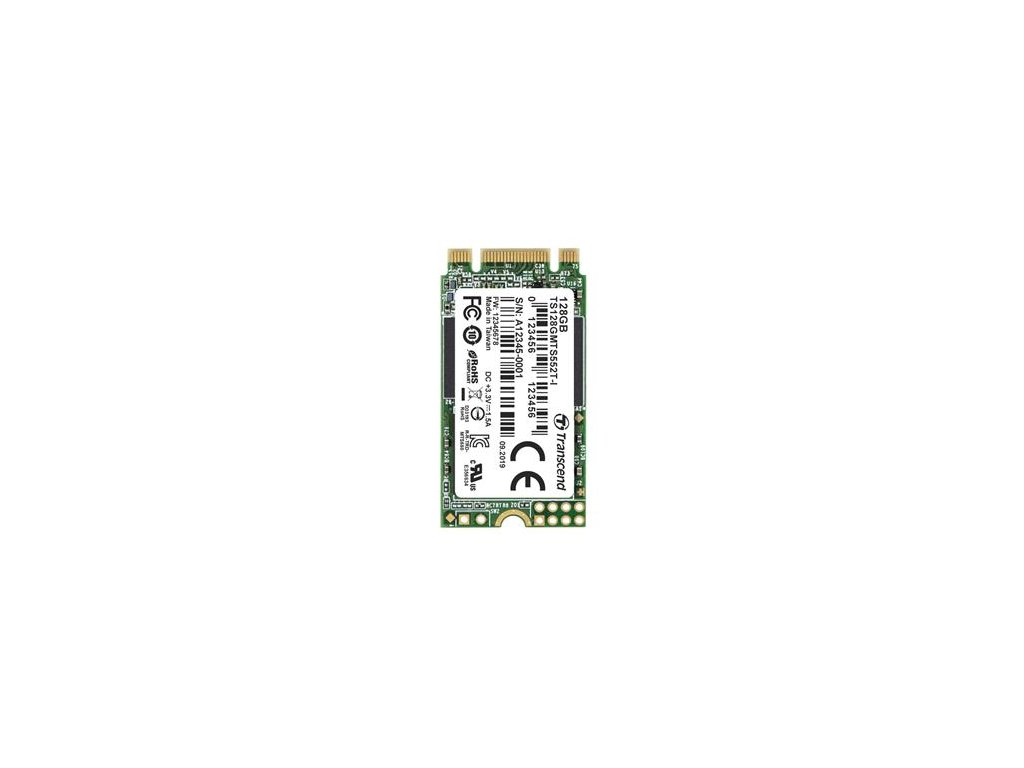

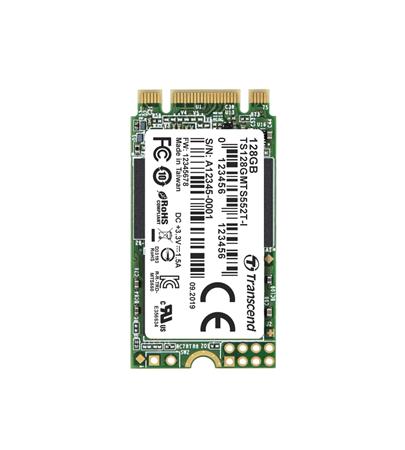

TRANSCEND MTS552T-I 128GB Industrial 3K P/E SSD disk M.2, 2242 SATA III 6Gb/s (3D TLC) B+M Key, 560MB/s R, 510MB/s W

Detailní popis produktu

Kód: 779565
P/N: TS128GMTS552T-I
EAN: 0760557847977

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
TRANSCEND MTS552T-I 128GB Industrial 3K P/E SSD disk M.2, 2242 SATA III 6Gb/s (3D TLC) B+M Key, 560MB/s R, 510MB/s W

Transcend's MTS552T-I M.2 SSD features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to BiCS3 NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTS552T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.

MTS552T-I model with wide temperature (-40°C ~ 85°C) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Features
DRAM Cache embedded
Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Wide-temperature model available: promised operational reliability in a wide temperature range (from -40°C to 85°C)
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Built-in LDPC ECC (Error Correction Code) functionality
Enhanced S.M.A.R.T. function for durability
Compliant with RoHS 2.0 standards
Supports Trim and NCQ command
Power-saving DevSleep (Device Sleep) mode (optional)

Specifications:
Dimensions: 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight: 5 g (0.18 oz)
Form Factor: M.2
M.2 Type : 2242-D2-B-M
Bus Interface: SATA III 6Gb/s
Flash Type: 3D TLC NAND flash
Capacity: 128 GB
Operating Voltage: 3.3V±5%
Operating Temperature: -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature: -40°C (-40°F) ~ 85°C (185°F)
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 1.7 watt(s)
Power Consumption (Sleep): 0.3 watt(s)
Sequential Read/Write (CrystalDiskMark, max.):
- Read: 560 MB/s
- Write: 510 MB/s
4K Random Read/Write (IOmeter, max.):
- Read: 85,000 IOPS
- Write: 85,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (Max.): 880 TB
Drive Writes Per Day (DWPD) : 1.61 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
SSD Scope Pro software is required by request. Please contact us for more information.
