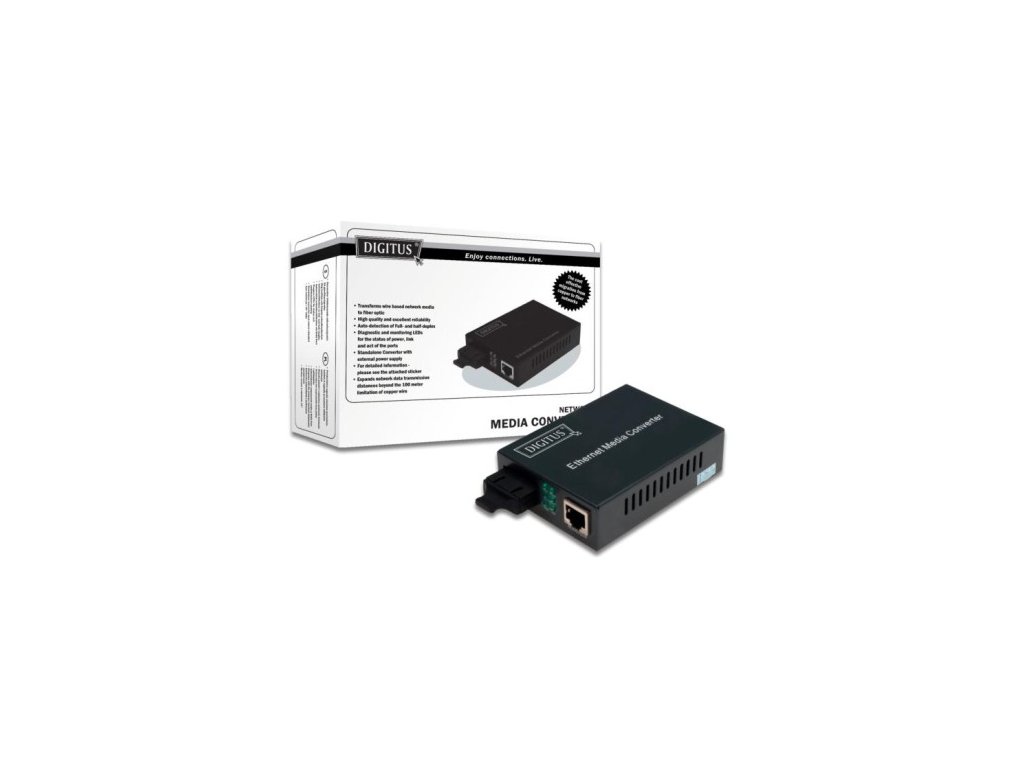

DIGITUS Media Converter, Singlemode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 20km

Detailní popis produktu

Kód: 307078
P/N: DN-82021-1
EAN: 4016032293101

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Optický konvertor 100Base-T na 100 Base FX s konektorem SC, lze použít samostatně nebo je možné přikoupit rackové šasi.

The perfect converter solution for various fiber media

Transforms wire based network media to fiber optic
High quality and excellent reliability
10/100Base-TX to 100Base-FX
Connectors: 1x RJ45, 1x SC Duplex
Distance up to 20km
Wavelength: 1310nm
Singlemode Dual Fiber
Automatic Cable detection - Auto MDI / MDI-X function
Auto-Negotiation of Full- and half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Link Fault Pass Through (LFP) Function for easier Network Maintenance
Suitable for 9/125µm Fiber Cables
Transmission Power: Minimum -15 dBm, Maximum -8 dBm
Sensitivity Receiving Power: Minimum -38 dBm
Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
128kB Data Buffer
Operating Temperature: 0 to 55°C
Dimensions (L x W x H): 95mm x 70mm x 26mm
Weight: 200g
Standalone Converter with external power supply
Input Supply Voltage: 5V DC
Max. Current: 800mA
Power Consumption: 2.5W

Výrobek je dodáván s manuálem pouze v anglickém jazyce.
