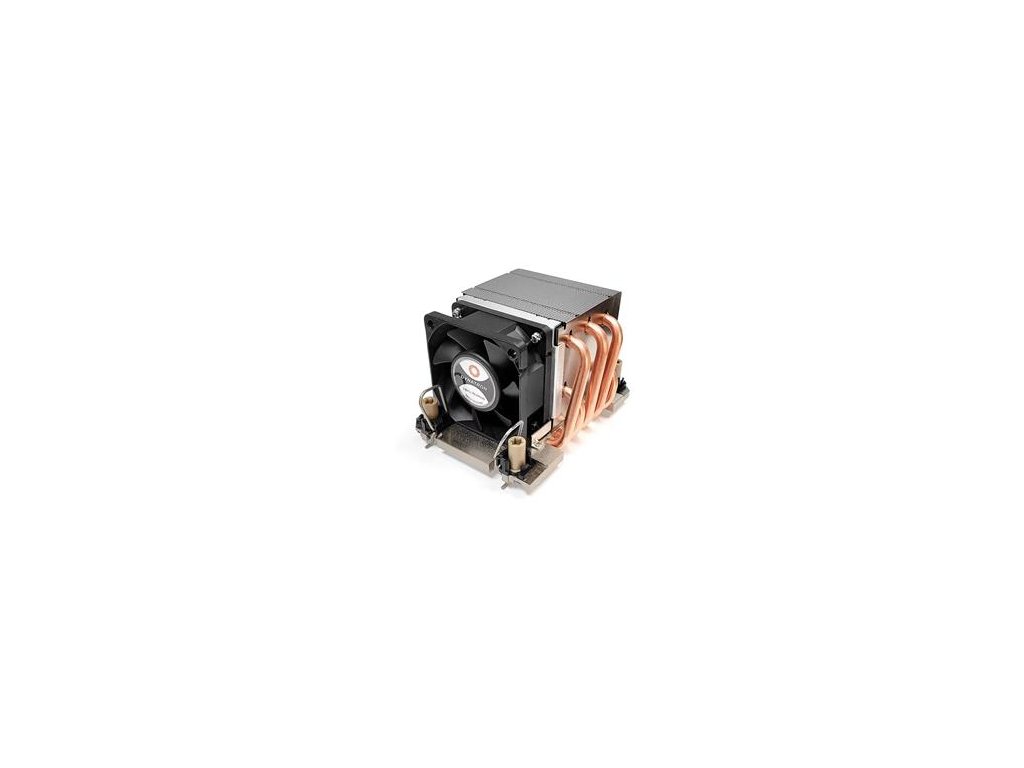

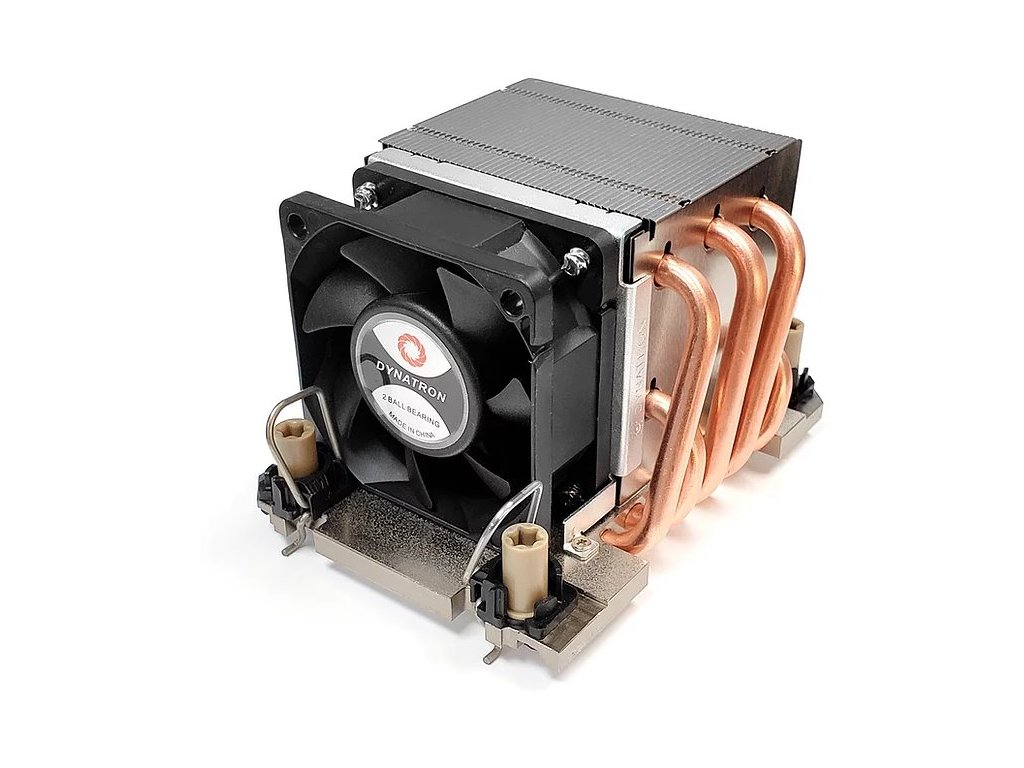

Dynatron N11 - 2U Active Cooler for Intel 4189, up to 270W

Detailní popis produktu

•


  Additional Information










































































  CPU Support	Intel
  CPU Socket	FCLGA 4189-4/5(Socket P4/P5 or P+)
  Solution	2U Server and Up
  Dimensions	113.0 x 82.0 x 66.0 mm
  Weight	460 g
  Material	Aluminum Fin stack with Heat Pipe embedded
  Fan Dimension	60 x 60 x 25 mm
  Speed	Up to 8500 RPM
  Rated Voltage	12V
  Bearing	2 Ball Bearing
  Power	At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W
  Air Flow	At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM
  Noise Level	At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA
  Air Pressure	At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O
  Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
  Thermal Grease	Shin-Etsu 7762 Pre-printed





  *All product specifications and product images are subject to change without notice.
