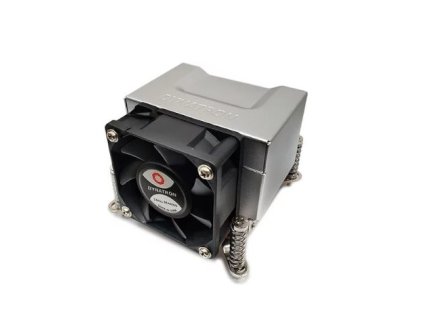

Dynatron N5 - 2U Active Cooler for Intel 4189, up to 205W

Detailní popis produktu

•


  Additional Information










































































  CPU Support	Intel
  CPU Socket	FCLGA 4189-4/5(Socket P4/P5 or P+)
  Solution	2U Server and Up
  Dimensions	113.0 x 82.0 x 66.0 mm
  Weight	440 g

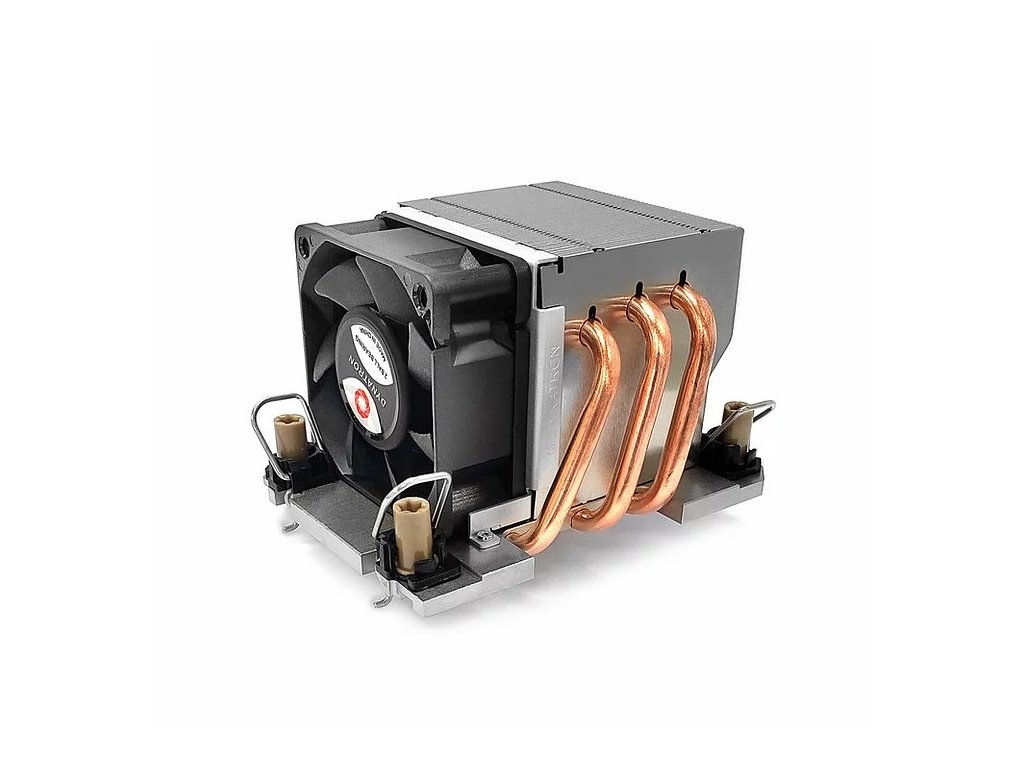

  Material	Aluminum Fin stack with Heat Pipe embedded
  Fan Dimension	60 x 60 x 25 mm
  Speed	At Duty Cycle 0~20%: 1700 ± 200 RPM At Duty Cycle 50%: 4000 ± 15% RPM At Duty Cycle 100%: 8000 -0 / +500 RPM
  Rated Voltage	12V
  Bearing	2 Ball Bearing
  Power	At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.520 W At Duty Cycle 100%: 9.60 W
  Air Flow	At Duty Cycle 0~20%: 9.86 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 49.32 CFM
  Noise Level	At Duty Cycle 0~20%: 19.32 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 54.26 dBA
  Air Pressure	At Duty Cycle 0~20%: 0.860 mm-H2O At Duty Cycle 50%: 4.760 mm-H2O At Duty Cycle 100%: 21.50 mm-H2O
  Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
  Thermal Grease	Shin-Etsu 7762 Pre-printed





  *All product specifications and product images are subject to change without notice.
