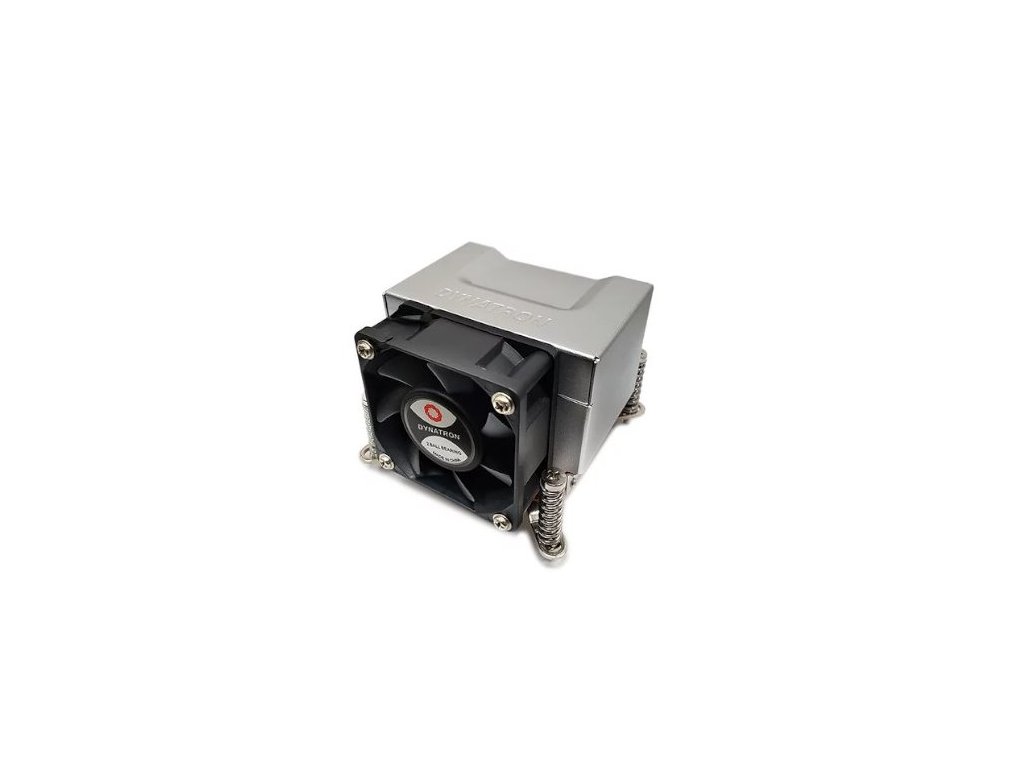

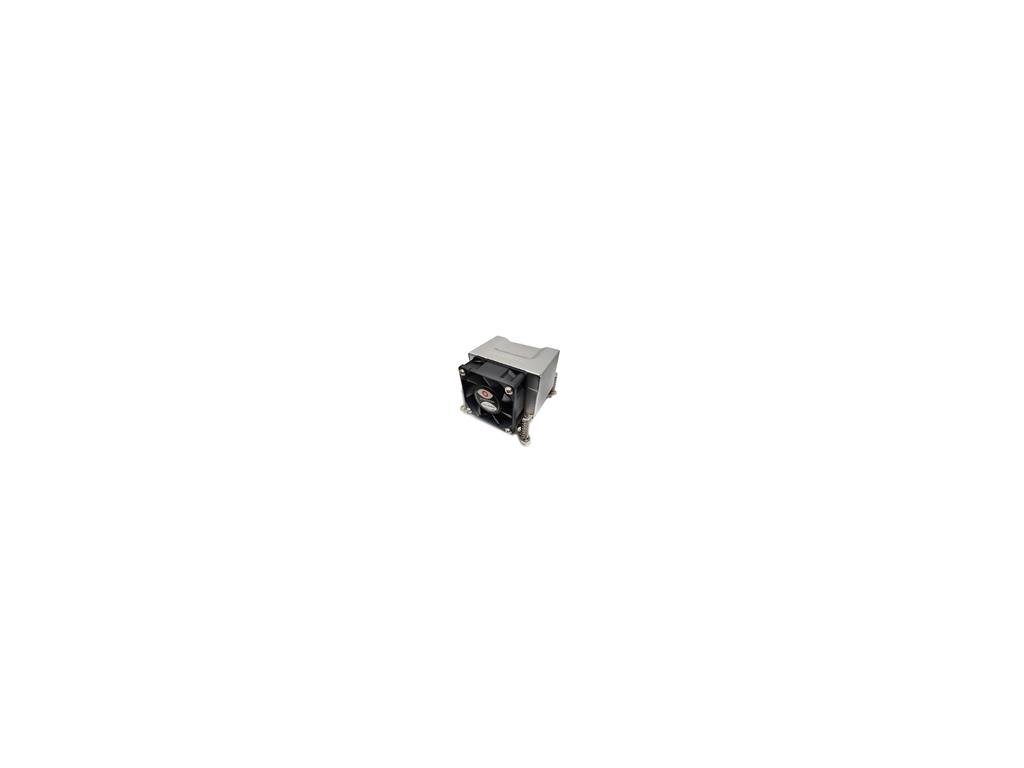

Dynatron Q5 - Active 2U Cooler Intel 1700 -RoHS

Detailní popis produktu

•  LGA 1700


•  Recommend for Intel® Alder Lake S Processor


•  Copper base & aluminum fins with heat pipe embedded


•  Up to TDP 125W






  SPECIFICATIONS:






















































































  Application
  CPU Socket	LGA 1700
  CPU	Recommend for Intel® Alder Lake S Processor
  Solution	Active Cooler for 2U Server & up
  Technical Data
  Overall dimension	90.7 x 85.0 x 65.1 mm
  Weight	515.2g
  Heat Sink
  Material	Copper Base & Aluminum Fins with Heat Pipe embedded
  Fan
  Fan Dimension	60 x 60 x 25 mm
  Speed	At Duty Cycle 0~20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 Min RPM
  Bearing	2 Ball Bearing
  Rated Voltage	12 V
  Power	At Duty Cycle 0~20%: 1.20W At Duty Cycle 50%: 2.28W At Duty Cycle 100%: 7.2W
  Air Flow	At Duty Cycle 0~20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM
  Noise Level	At Duty Cycle 0~20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA
  Static Pressure	At Duty Cycle 0~20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O
  Lead Wire Pin Out	Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM)
  Thermal grease	Pre-printed
