ERGOTRON WFT LX ARM MOUNT, GROMMET ACCESSORY KIT, upevnění ke stolu

Detailní popis produktu

Kód: 120266
P/N: 98-017
EAN: 0698833057393

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
ERGOTRON WFT LX ARM MOUNT, GROMMET ACCESSORY KIT, upevnění ke stolu

For WorkFit-T, WorkFit-TL or WorkFit-TLE
This special grommet accessory kit is required when attaching an LX arm to the popular WorkFit-T, WorkFit-TL or WorkFit-TLE Sit-Stand Workstation. Compatible only with the LX Desk Mount Arm, LX Dual Direct Arm and LX Dual Side-by-Side Arm.

NOTE:Weight capacity and mounting location for LX arms are limited when mounted to WorkFit-T/TL. See Tech Specs below for details.

Product Benefits
Perfect length to securely attach the LX arm’s base to the WorkFit-T/TL/TLE
Leaves plenty of clearance under the workstation’s surface to ensure nothing interferes with the unit’s support apparatus during height adjustment
Attach LX arm through the pre-drilled hole pattern on the WorkFit-T/TL/TLE surface
Alternatively, use included template to create a mounting location elsewhere on the surface (45-241-026 only)

Part Number: 98-017
Description: LX Arm Grommet Mount for WorkFit-T/TL/TLE (zinc plated steel)

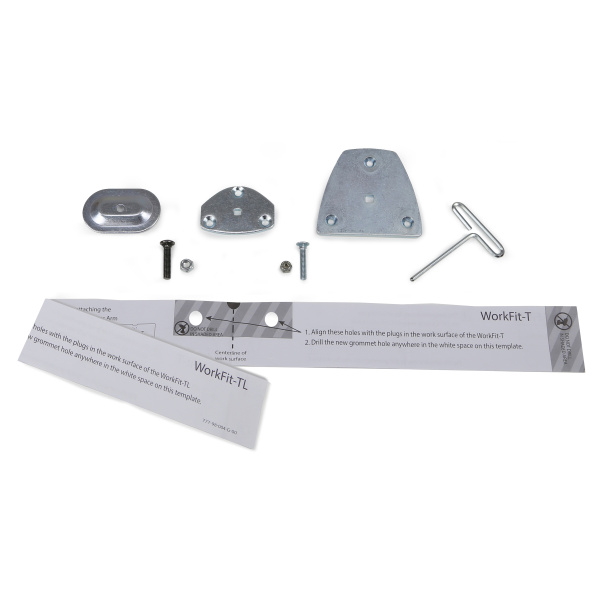

Includes grommet plates, bolts, mounting template, wrench
Only compatible with LX Desk Mount Arm (45-241-026 or 45-490-216), LX Dual Direct Arm (45-489-026 or 45-489-216 or 45-489-231) and LX Dual Side-by-Side Arm (45-245-026 or 45-491-216). Other LX arms are not recommended for attachment to WorkFit-T, WorkFit-TL or WorkFit-TLE
Note: Weight capacity and mounting location for LX arms are limited when mounted to WorkFit-T/TL/TLE
Weight Capacity: LX Desk Mount Arm = 14 lbs (6.3 kg); LX Dual Direct Arm = 4.8 lbs (2.2 kg) per monitor; LX Dual Side-by-Side Arm = 6 lbs (2.7 kg) per monitor
Refer to Installation Manual for allowable mounting locations on WorkFit-T/TL/TLE surface
Shipping Dimensions: 5.6" x 5.6" x 2.7" (14 x 14 x 7 cm)
Shipping Weight: 1.5 lbs (.7 kg)
