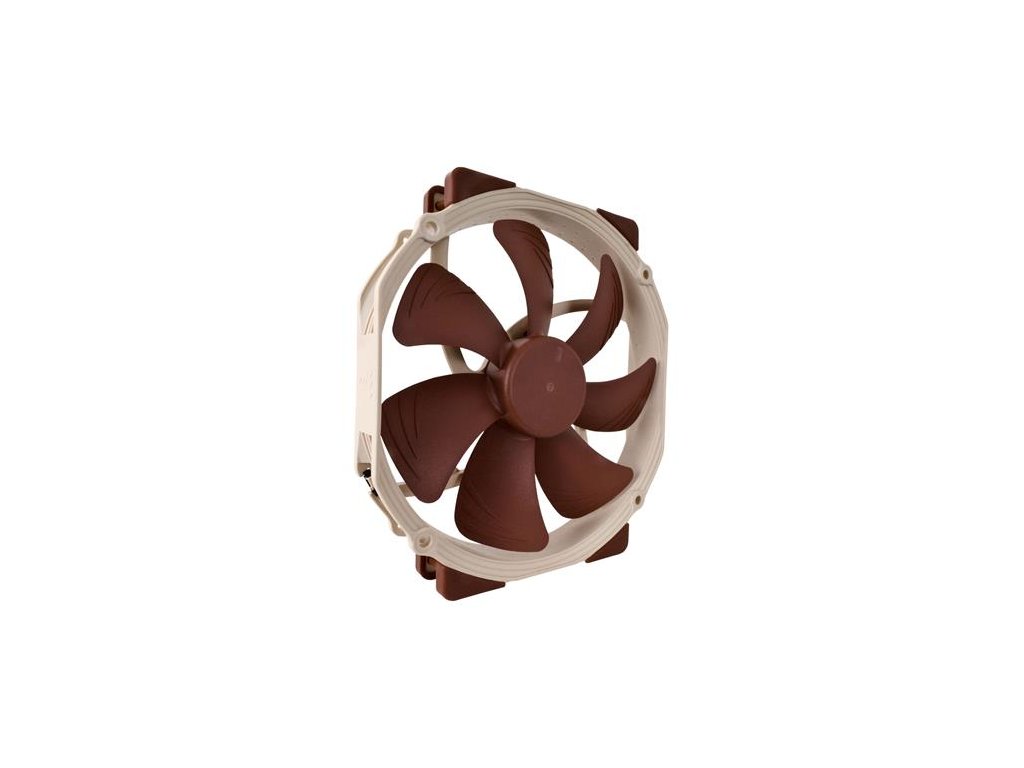

Noctua NF-A15 PWM, 140x150x25 mm, 4-pin

Detailní popis produktu

Kód: 628365
P/N: NF-A15-PWM
EAN: 4716123314806

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Noctua NF-A15 PWM, 140x150x25 mm, 4-pin

Špičkový ventilátor nové generace NF-A15 PWM. Je vybaven druhou generací osvědčených SSO ložisek a novou PWM IC technologií Smooth Commutation Drive (SCD) pro plně automatické řízení rychlosti otáček, tichý chod a malou spotřebu.

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.

Size: 140x150x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A-Series with Flow Acceleration Channels
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 1200 RPM
Rotational Speed with L.N.A. (+/- 10%): 900 RPM
Min. Rotational Speed (PWM): 300 RPM
Airflow: 115,5 m^(3)/h
Airflow with L.N.A.: 88,7 m^(3)/h
Acoustical Noise: 19,2 dB(A)
Acoustical Noise with L.N.A.: 13,8 dB(A)
Static Pressure: 1,51 mm H2O
Static Pressure with L.N.A.: 0,89 mm H2O
Max. Input Power: 0,96 W
Max. Input Current: 0,08 A
Voltage: 12 V
MTBF: > 150.000 h

Scope of Delivery:
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

EAN: 4716123314806

Stránky o produktu:
https://noctua.at/en/products/fan/nf-a15-pwm
