SUPERMICRO 12Gb/s SAS controller, Internal RAID Adapter LSI SAS 3008, 8-port (internal), RAID 0,1,10

Detailní popis produktu

Kód: SRAOCS3008LL8I-A1A
P/N: AOC-S3008L-L8i
EAN: 672042143610

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Add-on Card

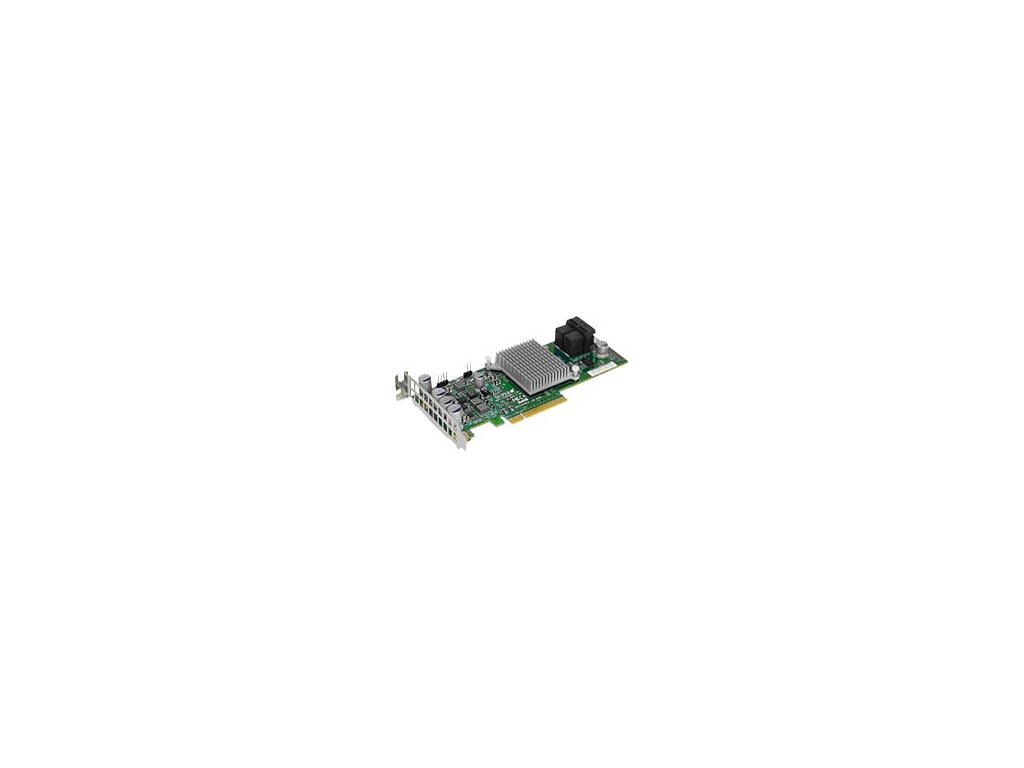

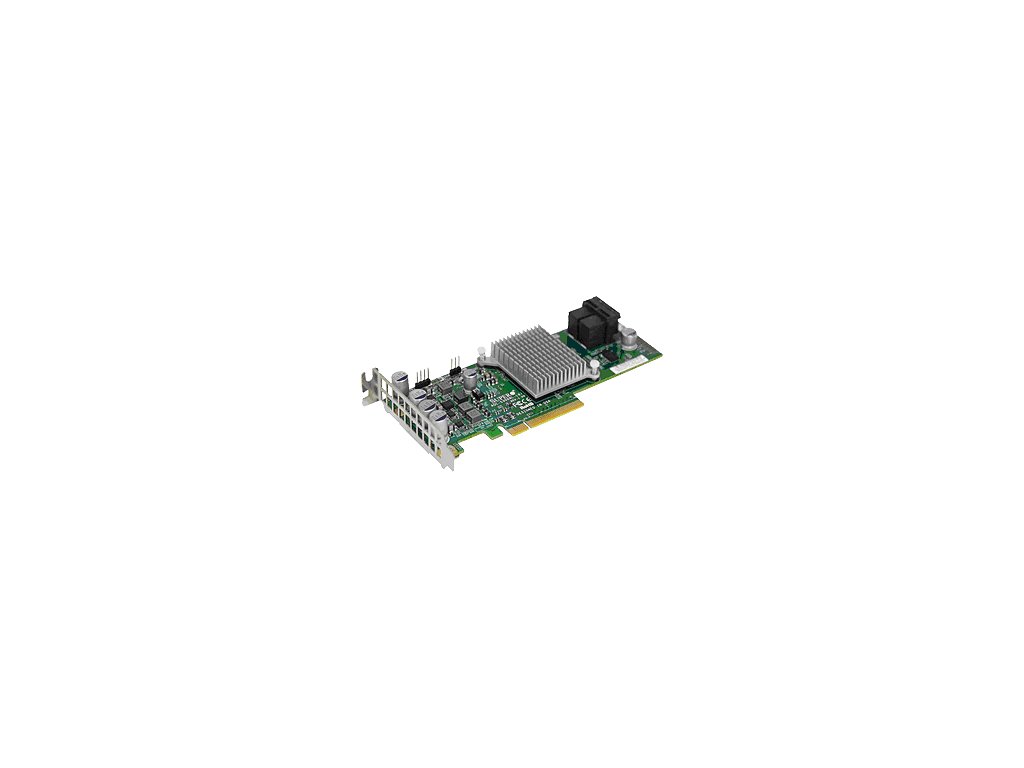

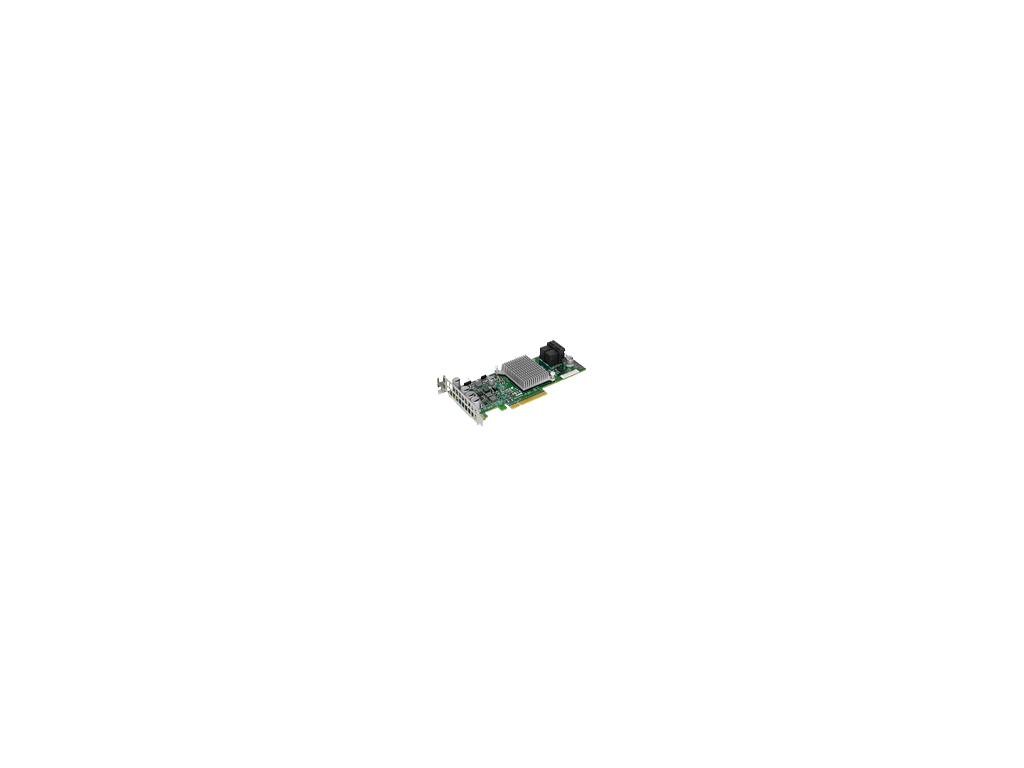

Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro MegaRAID AOC-S3008L-L8i feature 8 internal SAS connectors for high-performance storage connectivity.

Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapters delivers an intelligent and robust RAID solution.

The AOC-S3008L-L8i supports 63 devices.

This product is only available through Supermicro.

Compatible with Supermicro motherboards only.




Compliance

RoHS
RoHS Compliant 6/6, Pb Free








Key Features

Broadcom 3008 SAS controller
8-port (internal), 12Gb/s per port
Supports 63 devices
Supports MegaRAID Storage Manager Software
Automatically negotiates PCI-E (1.x, 2.x AND 3.X) link widths
Power management support
Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS2 expanders
OS Support : Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Processor at 1.2 GHZ
Supports RAID 0, 1, 1E and 10
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 0° to 55°C



Dimensions and Weight

H x L 2.7" x 6.6"
Weight 0.5 lbs


Tested Motherboards and Servers

Motherboards
• X9DRH-7TF
• X9DR3-LN4F+
• X9DRT-PIBQ
• X9DRT-P



Downloads

User's Guide [ Download ]
Driver [ Download ]
Firmware [ Download ]


Tested Hard Drives

Tested HDD/SSD [ Tested HDD List ]
