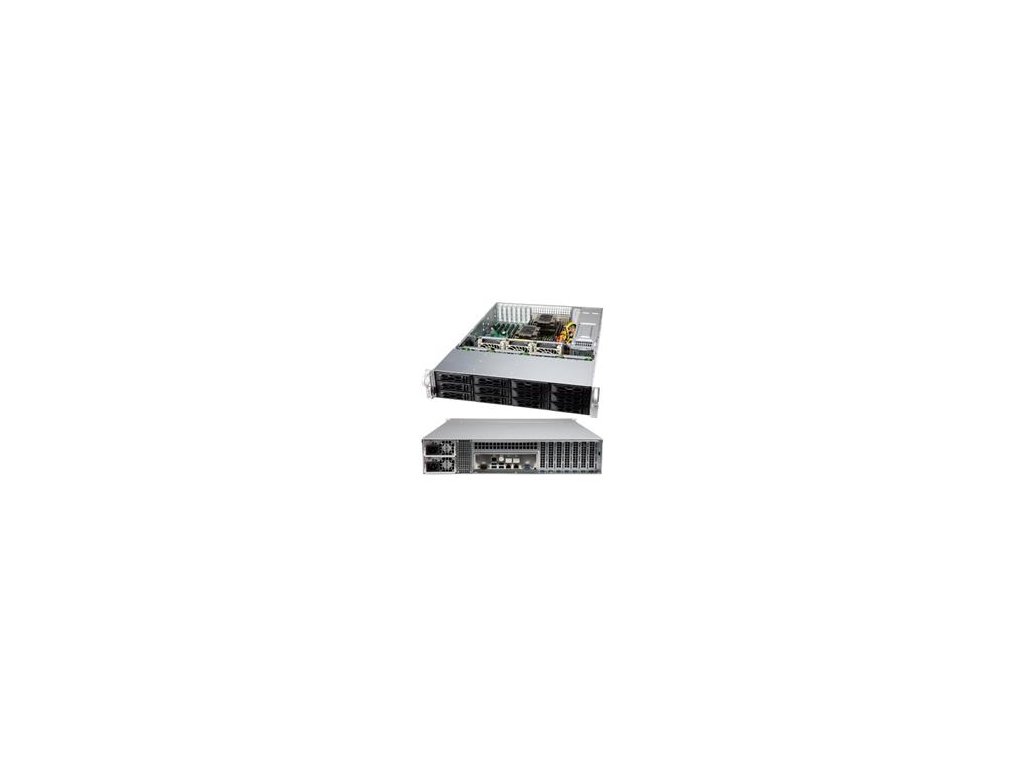

SUPERMICRO 2U chassis 12x 3,5" HS SAS3/SATA/NVMe, 2x920W (80PLUS Platinum)

Kód: SRCSELA26AC12R920LP1-A1A

Neohodnoceno

Značka: Supermicro

17 688 Kč 14 618 Kč bez DPH

(5 ks)

Můžeme doručit do: 3.2.2026 Možnosti doručení

Detailní informace

Zobrazit všechny související produkty

Detailní popis produktu

Kód: SRCSELA26AC12R920LP1-A1A
P/N: CSE-LA26AC12-R920LP1
EAN: 672042467785

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Key Features

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".

Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3

Optional rear 2x 2.5" hot-swap drive bay kit

12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device

920W 1U Redundant Power Supply

7x low-profile expansion slot(s)

3x 8cm high-performance PWM fan(s)

Support service tag for system information

Comes with standard 2U package with 2-layer carton and SMC logo

Product SKUs

SuperChassis LA26AC12-R920LP1

Form Factor

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".

Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support

Dual and Single Intel® and AMD processors

Dimensions
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Gross Weight	69 lbs (31.3 kg)
Net Weight	35.3 lbs (16 kg)
Packaging (W x H x L)	26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm)
Available Color	Black

Expansion Slots

7x Low-profile expansion slot(s)

Drive Bays

Optional 2x 2.5" hot-swap drive bay

12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3

Backplane

12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS

Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2 Network Activity LEDs Unit Identification (UID) LED Fan Fail/System Over Heat LED

Systems Cooling
Fans	3x 8cm high-performance PWM fan(s)

System Monitoring

Optional Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Power Supply
1U 920W redundant power supply
Power Efficiency	94+%
Total Output Power and Input	920W with Input 200 - 240Vac 920W with Input 100 - 127Vac 920W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (connector)
+12V	Max: 75A / Min: 0A (200Vac - 240Vac) Max: 75A / Min: 0A (100Vac - 127Vac)
+5Vsb	Max: 4A
Power Distributor	PDB-PT826-L8824 O/P: 12V/75 +5V Max: 30A +3.3V Max: 24A -12V Max: 0.6A
Certification	Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC UL/CB

Standard Parts List
	Part Number	Qty	Description
HD Backplane	BPN-SAS3-LA26A-N12	1	2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s)	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Part(s)	MCP-120-00115-0N	7	Blank LP L-bracket with 4x4 vent holes
Part(s)	MCP-290-82603-0V	1	Silver left chss handle w/ ctrl panel for SC826 cable 235mm
Part(s)	MCP-290-82616-0V	1	OEM Silver right chassis handle for SC826(no logo label)
Part(s)	MCP-230-82602-0N	1	Top cover for SC826B/216B/825B
Fan(s)	FAN-0181L4	3	80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Drive Tray(s)	MCP-220-00184-0B	12	Black gen-9 tool-less cost-effective 3.5
Power Distributor	PDB-PT826-L8824	1	2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory	PWS-920P-1R2	2	1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
Rear Window	MCP-240-82608-0N	1	216B/826B LP rear window,RoHS/REACH,PBF

Optional Parts

	Part Number	Qty	Description
Air Shroud	MCP-310-29001-0N	-	SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
MCP-310-82603-0B	-	Mylar air shroud for 2U & 4U X11SPH,RoHS
Cable	CBL-PWCD-0160-IS •	-	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Chassis parts	MCP-290-00088-0N	-	Intrusion assembly
MCP-260-00042-0N •	-	STD I/O shield for X9 socket R server MB with Gasket.
HDD Kit	MCP-220-82616-0N •	-	12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
Rail	MCP-290-00053-0N •	-	Rail set, quick/quick, default for 2,3U 17.2"W
Short Rail	MCP-290-00058-0N •	-	Short rail set, quick release, 19.6"~26.9" Extendable Length

Motherboard (for CSE-LA26AC12-R920LP1)

Motherboard Name

H12DSi-N6

H12DSi-NT6

H12SSL-C

H12SSL-CT

H12SSL-i

H12SSL-NT

X12DPL-i6

X12DPL-NT6

= Most optimized Chassis for SuperServer Configuration

Blue color = Compatible

Green color = Global SKU & Compatible

Red dot & green color = Optimized + Global SKU
