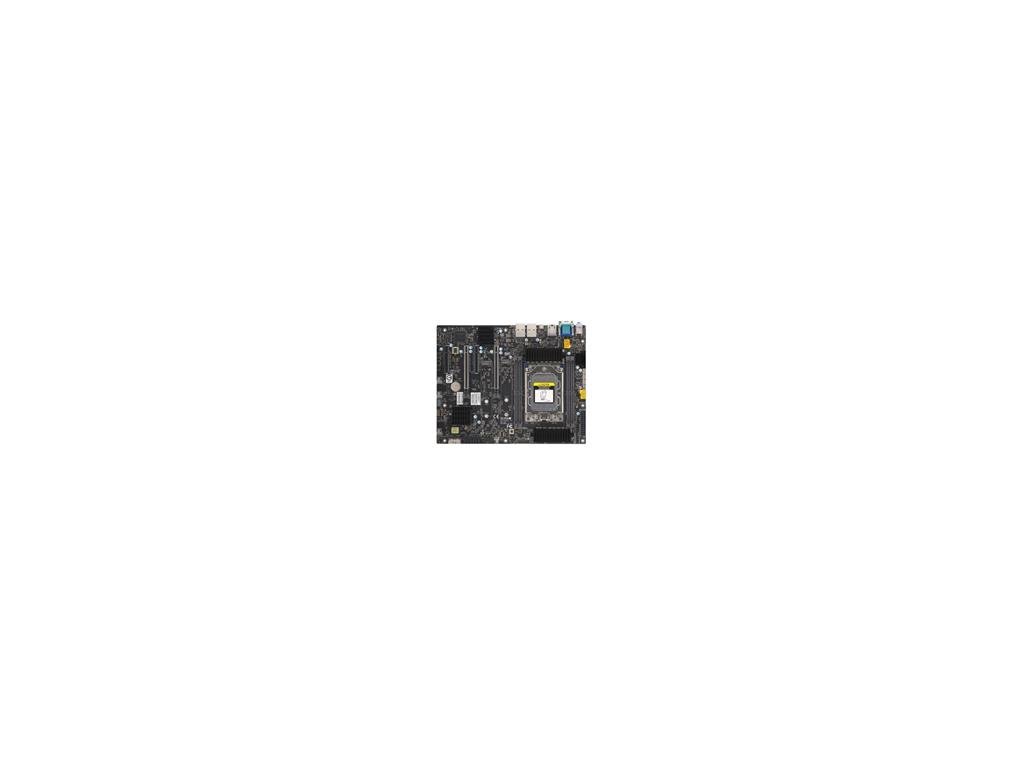

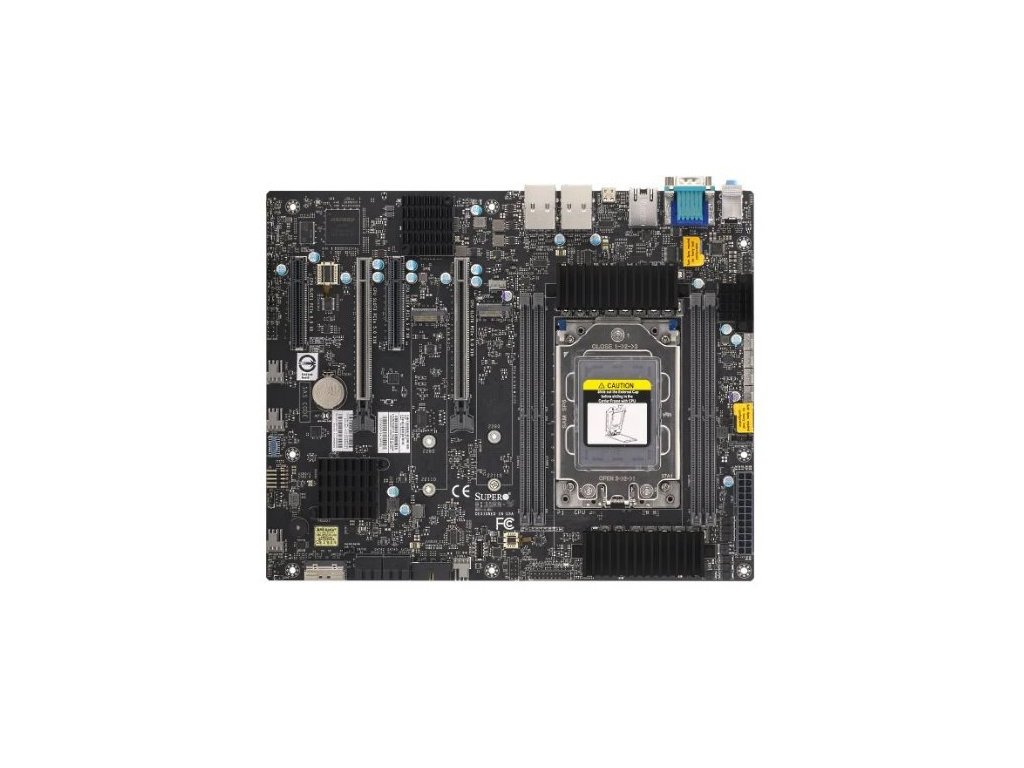

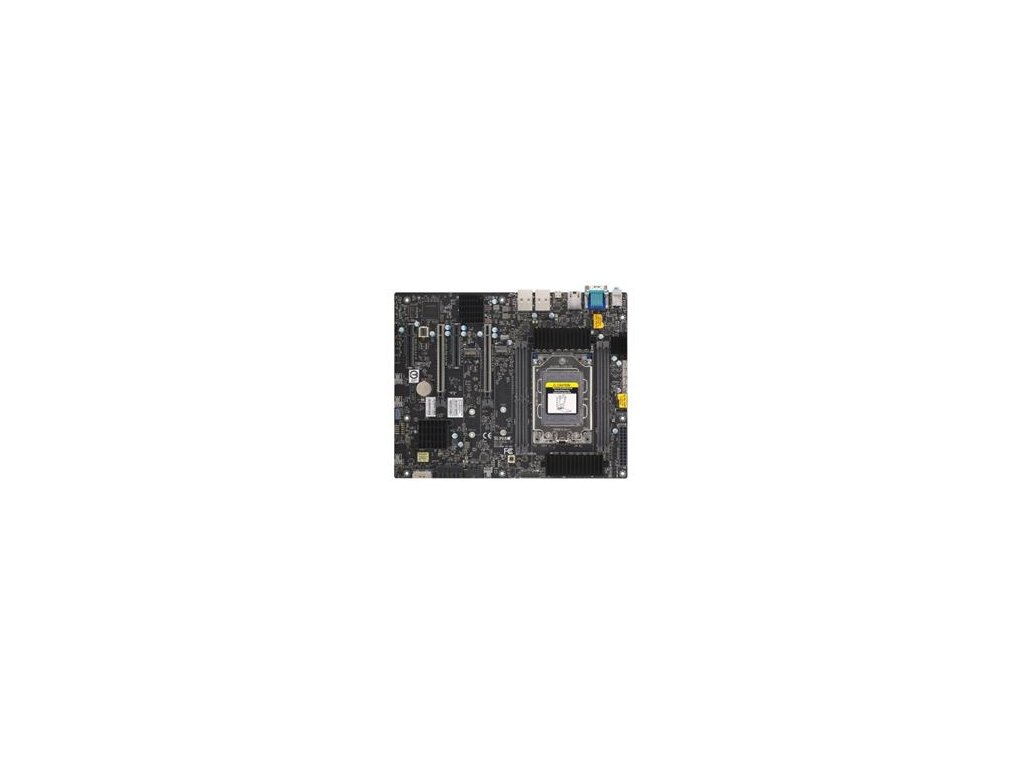

SUPERMICRO MB 1xTR5 (LGA-4844), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 1Gb,

Detailní popis produktu

Kód: SRMBDH13SRATFB-A1A
P/N: MBD-H13SRA-TF-B
EAN: 672042914890

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Product SKUs
MBD-H13SRA-TF
Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.384cm)
Processor
CPU	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series
Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP
Core	Up to 96 cores, 192 threads
System Memory
Memory Capacity	4 DIMM slots
Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz
Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Memory Type	5200 MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes	RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB
Memory Voltage	1.1V
On-Board Devices
Chipset	TRX50
SATA	4 SATA3 ports; RAID 0,1,10
Audio	ALC 888S HD Audio 5.1 Channel
Network Controllers	Single LAN with ASPEED AST2600, Dedicated LAN for IPMI
Dual LAN with 10Gb Broadcom BCM57416
Input / Output
USB	2 USB 2 port(s) (2 via header)
1 USB 3.2 Gen2x2 port(s) (1 rear type C)
2 USB 3.2 Gen1x1 port(s) (2 via header)
5 USB 3.2 Gen2x1 port(s) (4 rear type A; 1 header type C)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 COM rear)
TPM	1 TPM Header
Expansion Slots
PCIe	2 PCIe 5.0 x8, Open rear,
2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards,
1 PCIe 4.0 x8, MCIO connector
M.2	M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.5
SMBIOS 3.6 or later
UEFI 2.9
RTC (Real Time Clock) Wakeup
Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
PC Health Monitoring
Voltage	System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature
FAN	7x 4-pin fan headers (up to 7 fans)
Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump
Other Features	RoHS
Chassis intrusion detection
Power supply monitoring
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85%
Non Operating Relative Humidity Range	10% - 95%
