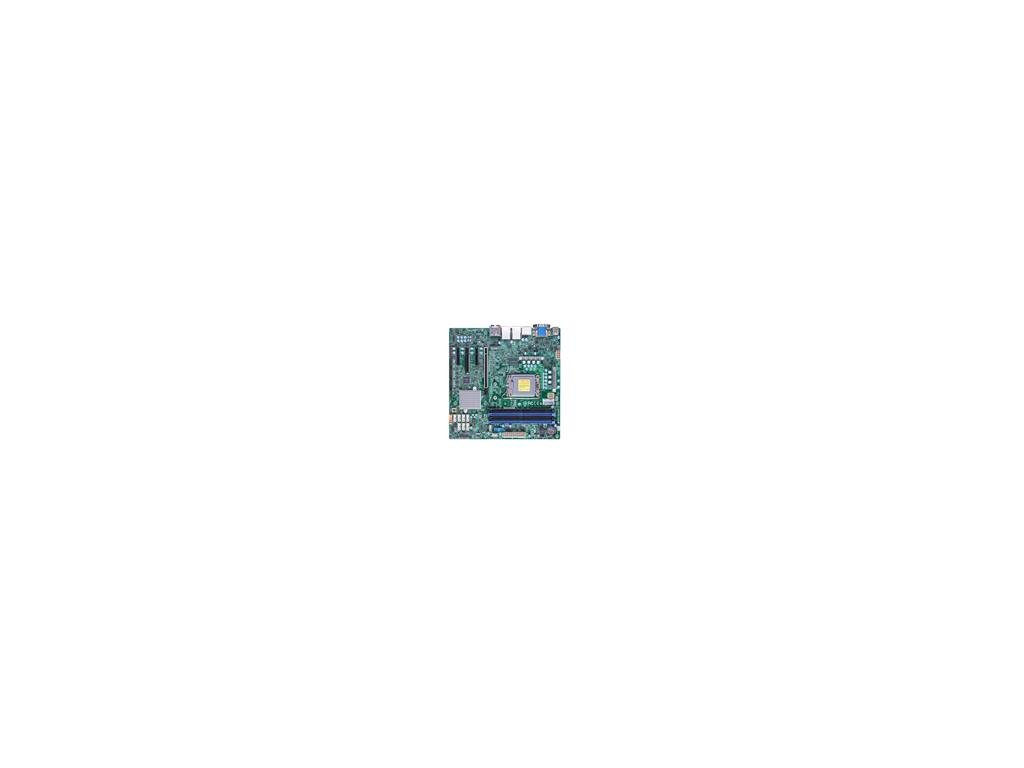

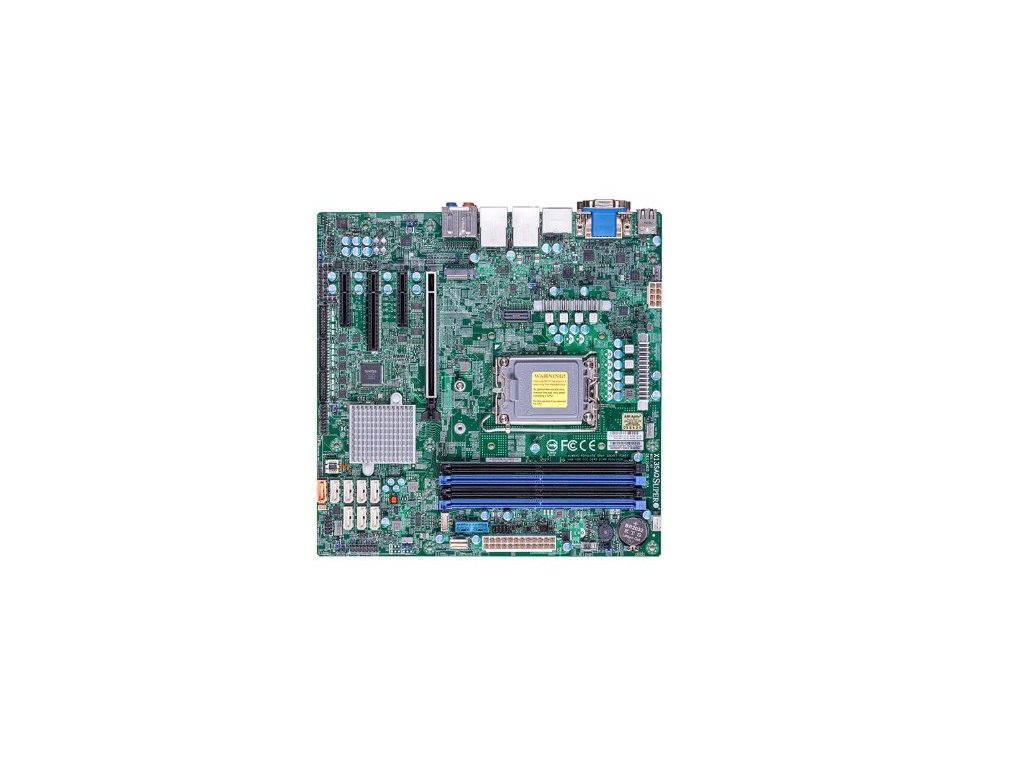

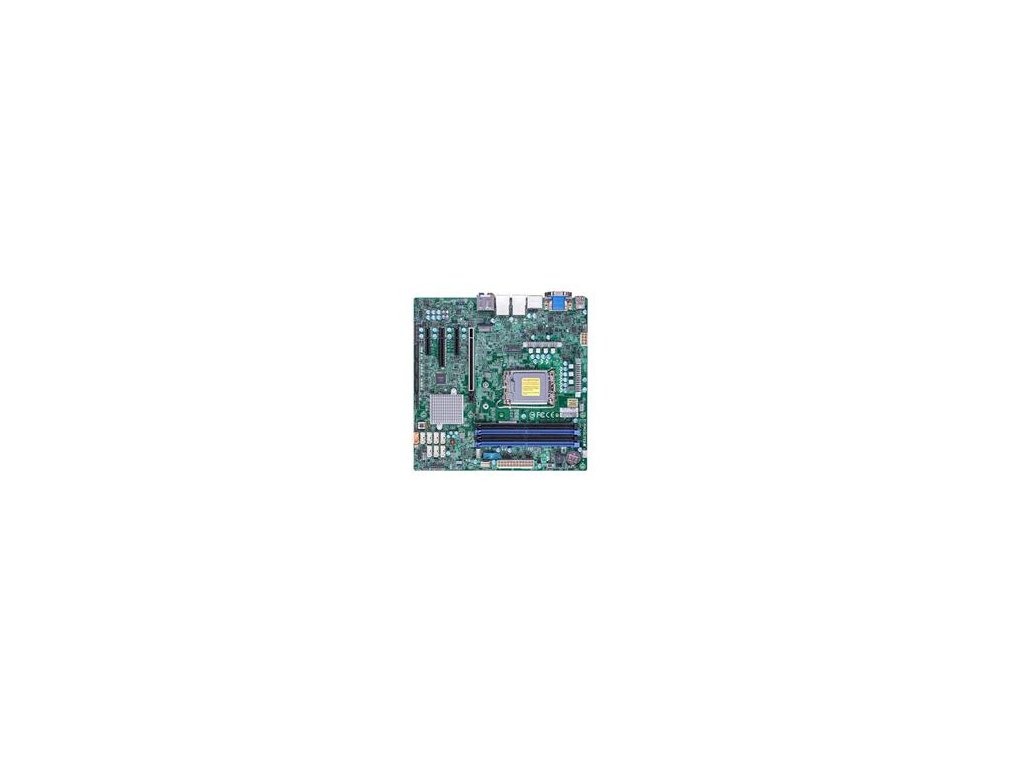

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,1xM.2,1x16,1x42x3 PCIe PCI,HDMI,DP,DVI,Audio,2x LAN

Kód: SRMBDX13SAQO-A1A

Neohodnoceno

Značka: Supermicro

10 108 Kč 8 354 Kč bez DPH

(5 ks)

Můžeme doručit do: 3.2.2026 Možnosti doručení

Detailní informace

Detailní popis produktu

Kód: SRMBDX13SAQO-A1A
P/N: MBD-X13SAQ-O
EAN: 672042497560

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Product SKUs

MBD-X13SAQ

Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket V0 supported
Core	Up to 24 cores

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type	4400/4000/3600 MT/s
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel Q670E
SATA	Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio	ALC 888S HD Audio
Network Controllers	Dual LAN with Intel® Ethernet i225LM

Input / Output
SATA	8 SATA3 (6Gbps) port(s)
USB	4 USB 2 port(s) (2 via header; 2 rear type A) 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A) 2 USB 3.2 Gen1 port(s) (2 via header) 2 USB 3.2 Gen2x2 port(s) (2 rear type C)
Video Output	1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port	6 COM Port(s) (2 header; 4 header)
TPM	TPM TPM 2.0 onboard

Expansion Slots
PCIe	1 PCIe 5.0 x16, 1 PCIe 4.0 x4 (in x8 slot), 1 PCIe 3.0 x4, 1 PCIe 3.0 x2 (in x4 slot), 1 PCIe 4.0 x4 SlimSAS

System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup

Management
Software	Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New!
System Management Software	Wake-on-LAN, Watchdog
Power Configurations	ACPI Power Management, ATX Power connector

PC Health Monitoring
Voltage	VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED	Power LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
Other Features	RoHS M.2 NGFF connector Chassis intrusion detection ATX Power connector ACPI power management
FAN	4x 4-pin fan headers (up to 4 fans)

Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
