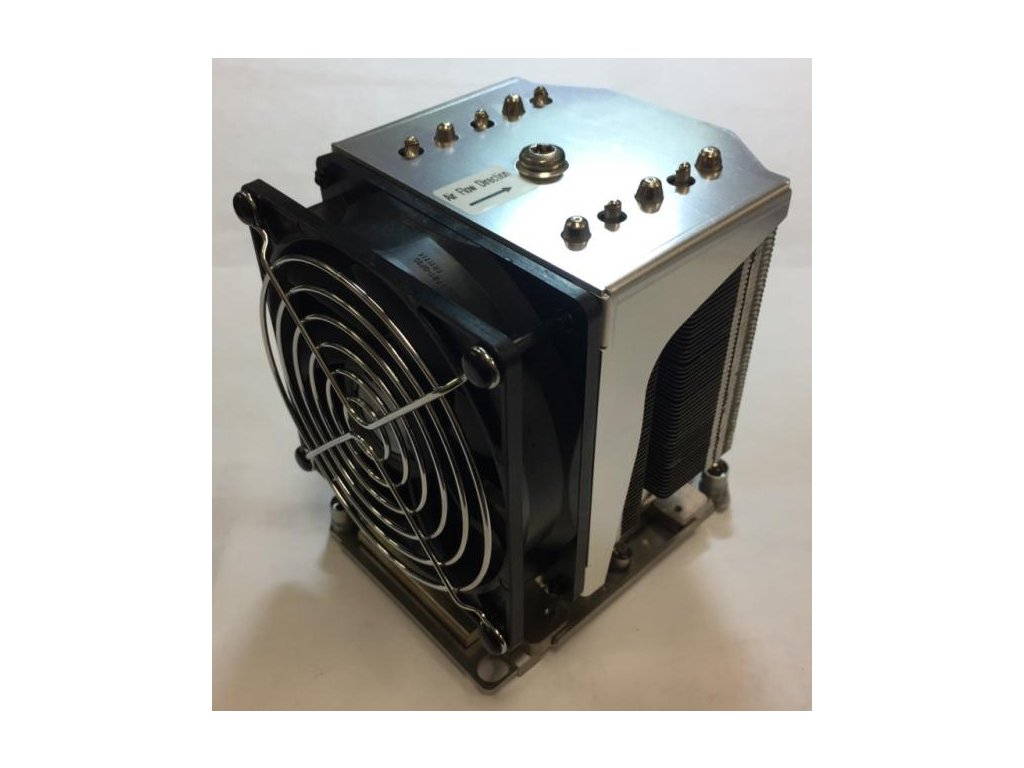

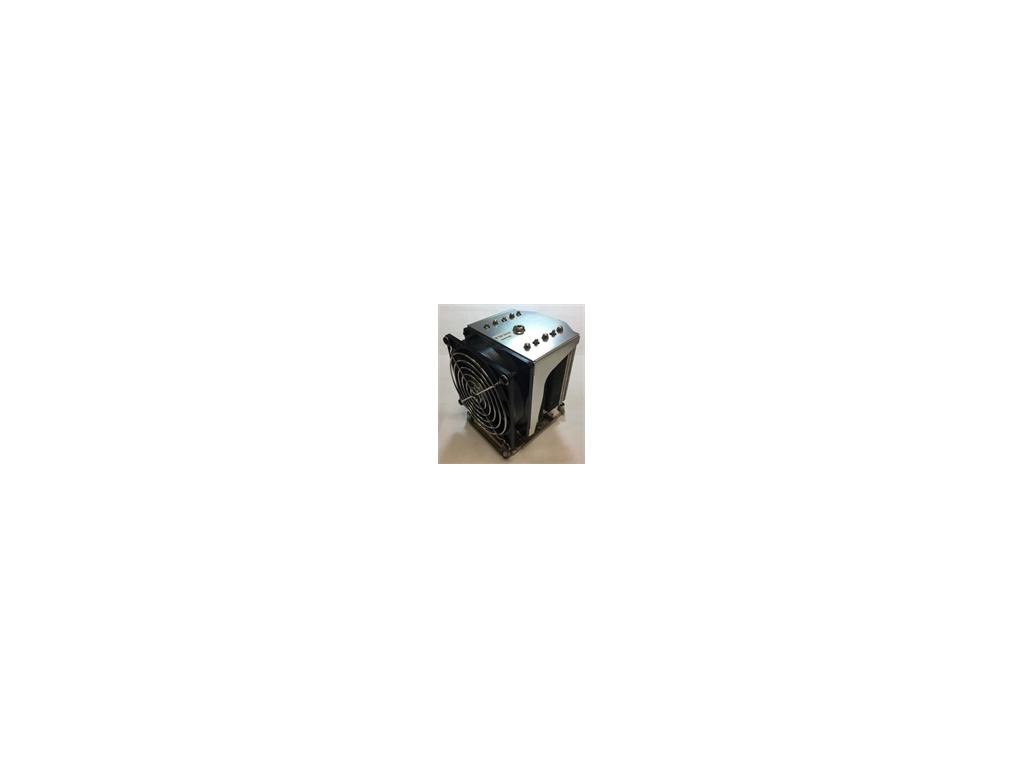

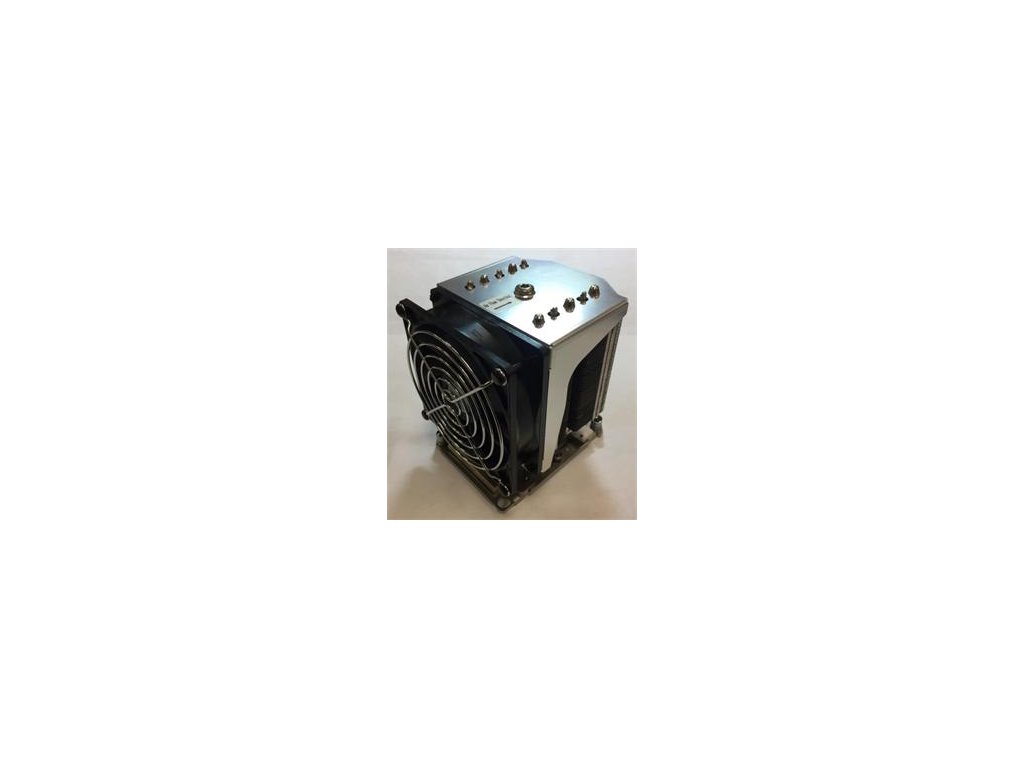

Supermicro SNK-P0070APS4 4U Heatsink s.3647-0 X11 Purley Platform 4U Series Servers and Workstations

Detailní popis produktu

Kód: SRSNKP0070APS4-A1A
P/N: SNK-P0070APS4
EAN: 672042279531

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
This CPU heat sink is designed for Supermicro X11 generation general 4U servers and workstations equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

Manufacturer
Supermicro

Server Form Factor
4U

Cooling Type
Active

CPU Configuration
Uni Processor, Dual Processor

Supported CPU SKU
Intel® Xeon® Scalable Processors

Supported CPU Socket
FCLGA3647-0 (Narrow Mounting Mechanism)

Supported CPU TDP
Up to 205 Watts

Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25W (mm)
Position: Front Side
MTBF/MTTF: 108,798 Hours


Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
