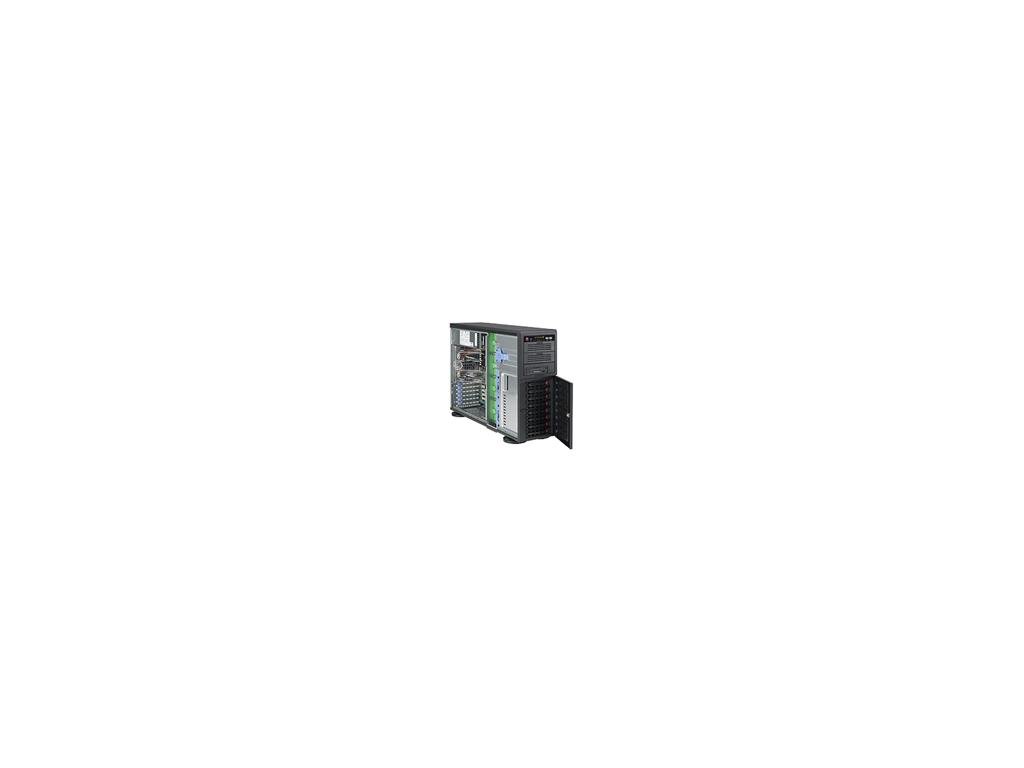

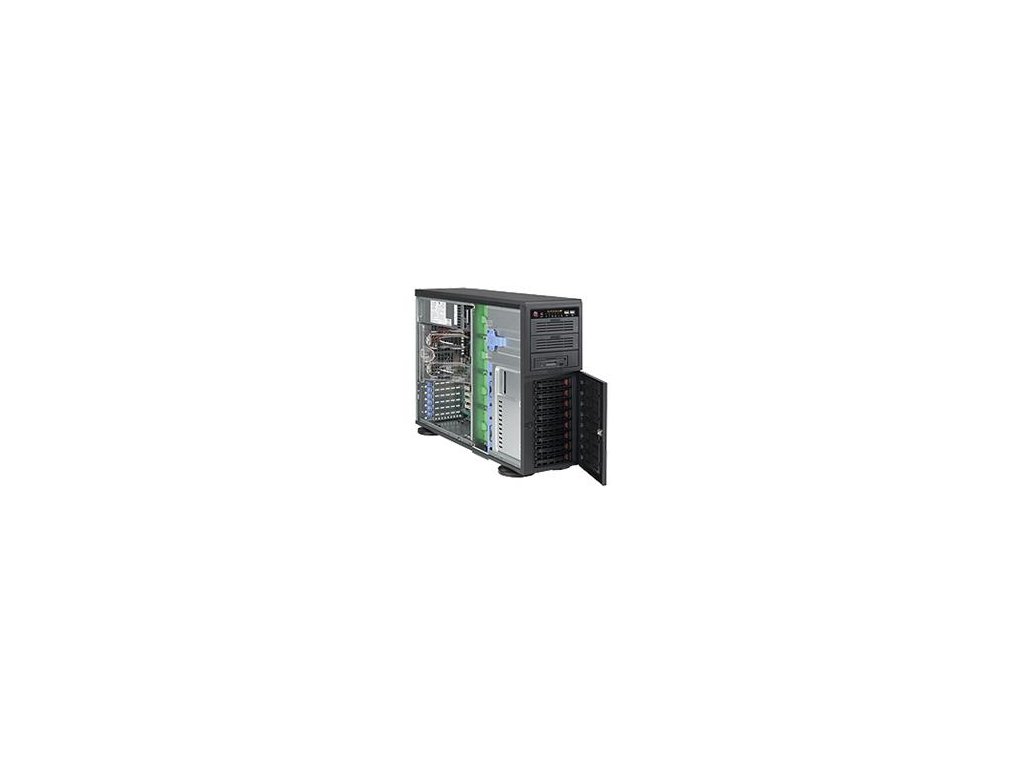

SUPERMICRO Tower/4U 8x 3,5" HS SAS/SATA, 2x 5,25", 1x 5,25" pro 3,5", 903W (80+gold) (Super Quiet - 28dB)

Kód: SRCSE743TQ903BSQ-A1A

Neohodnoceno

Značka: Supermicro

14 370 Kč 11 876 Kč bez DPH

(1 ks)

Můžeme doručit do: 7.1.2026 Možnosti doručení

Detailní informace

Zobrazit všechny související produkty

Detailní popis produktu

Kód: SRCSE743TQ903BSQ-A1A
P/N: CSE-743TQ-903B-SQ
EAN: 672042434428

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives

Whisper-Quiet (<28dB)

Front HDD Door Lock & Side Panel Intrusion Switch

Front I/O Ports: 2x USB 3.0

2x 8cm PWM Fans & 1x 9cm Rear PWM Fan

4U / Full Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12" x 13"/ATX/Micro ATX

903W 80-Plus Gold Certified High-Efficiency Power Supply

3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

Specifications


Product SKUs

CSE-743TQ-903B-SQ	SuperChassis 743TQ-903B-SQ

Form Factor

4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX

Processor Support

Dual and Single Intel® and AMD processors


Dimensions

Height	17.8" (452 mm)
Width	7" (178 mm)
Depth	25.5" (647 mm)
Net Weight	53 lbs (24.04 kg)
Gross Weight	56 lbs (25.4 kg)
Packaging (W x H x L)	24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color	Black

Expansion Slots

7 full-height & full-length expansion slot(s)

Drive Bays

8 x 3.5"/2.5" hot-swap SAS drive bay with SES3

Backplane

743 SAS BACKPLANE W/AMI MG9072

Peripheral Drives

3 x standard 5.25" drive bay

90 degree rotatable drive cage


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED
Ports	2x USB 3.0 Port(s)

Systems Cooling

Fans	2 x 2800 RPM fan(s) 1 x 2700 RPM fan(s)

System Monitoring

Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan
Power Efficiency	90%
Total Output Power and Input	900W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	190 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 25A / Min: 0.1A (100Vac - 240Vac) Max: 25A / Min: 0.1A (100Vac - 240Vac) Max: 25A / Min: 0.1A (100Vac - 120Vac) Max: 25A / Min: 0.1A (100Vac - 240Vac)
+5V	Max: 25A / Min: 0A
+3.3V	Max: 25A / Min: 0A
+5Vsb	Max: 4A / Min: 0.02A
+12Vsb	Max: NAA
Certification	Gold Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL

Components


Standard Parts List

	Part Number	Qty	Description
HD Backplane	CSE-SAS-743TQ	1	743 SAS BACKPLANE W/AMI MG9072
Cable(S)	CBL-0044L	4	57.5CM SATA FLAT S-S PBF
Cable(S)	CBL-0084	1	16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(S)	CBL-0087	1	CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S)	CBL-0157L	1	8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S)	CBL-0160L	1	US POWER CORD 16AWG, PB FREE
Cable(S)	CBL-0216L	4	4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S)	CBL-0471L	1	USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Fan(s)	FAN-0103L4	1	92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
Fan(s)	FAN-0104L4	2	80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Drive Tray(s)	MCP-220-00193-0N	8
Power Supply & Accessory	PWS-903-PQ	1	PS2 900W Multi-Output Power Supply 80Plus Gold


Optional Parts List

	Part Number	Qty	Description
Mounting Rail	CSE-PT26L-(B)	-
HDD Tray	MCP-220-00080-0B	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
Air Shroud	MCP-310-49002-0N	-	SC743 Intel DP X9, X8 PC air shroud 12x13MB
Air Shroud	MCP-310-48002-0N	-	Intel DP X8, X7 motherboard air shroud for passive CPU heatsink
Air Shroud	MCP-310-74301-0N	-	Air Shroud For SC743-SQ
Cable	CBL-0157L	-	8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable	CBL-0286L	-	4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG
Fan Kit	FAN-0082L4	-	80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Fan Kit	FAN-0091L4	-	92X38MM 4-PIN PWM FAN W/ HUS FOR SC743
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Peripheral Drive(s)	DVM-LITE-DVDRW24-HBT	-	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Active Heatsink	SNK-P0034AP4	-	4U+ ACTIVE CPU HS FOR SC743 W/ X7 DP WS MB
