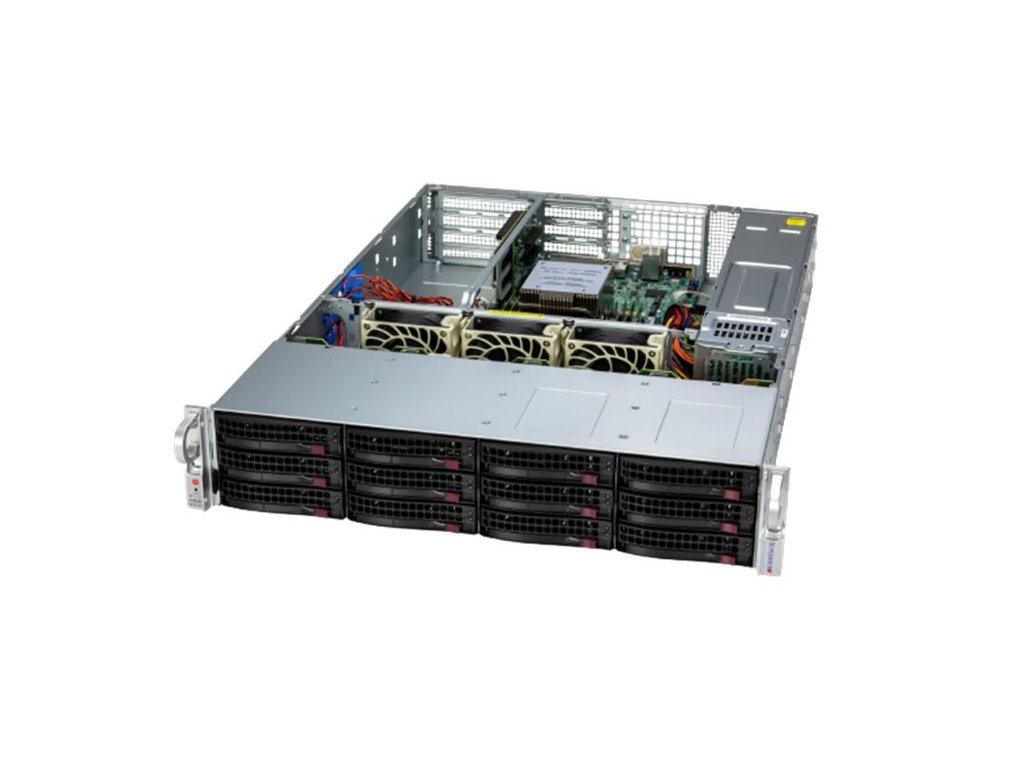

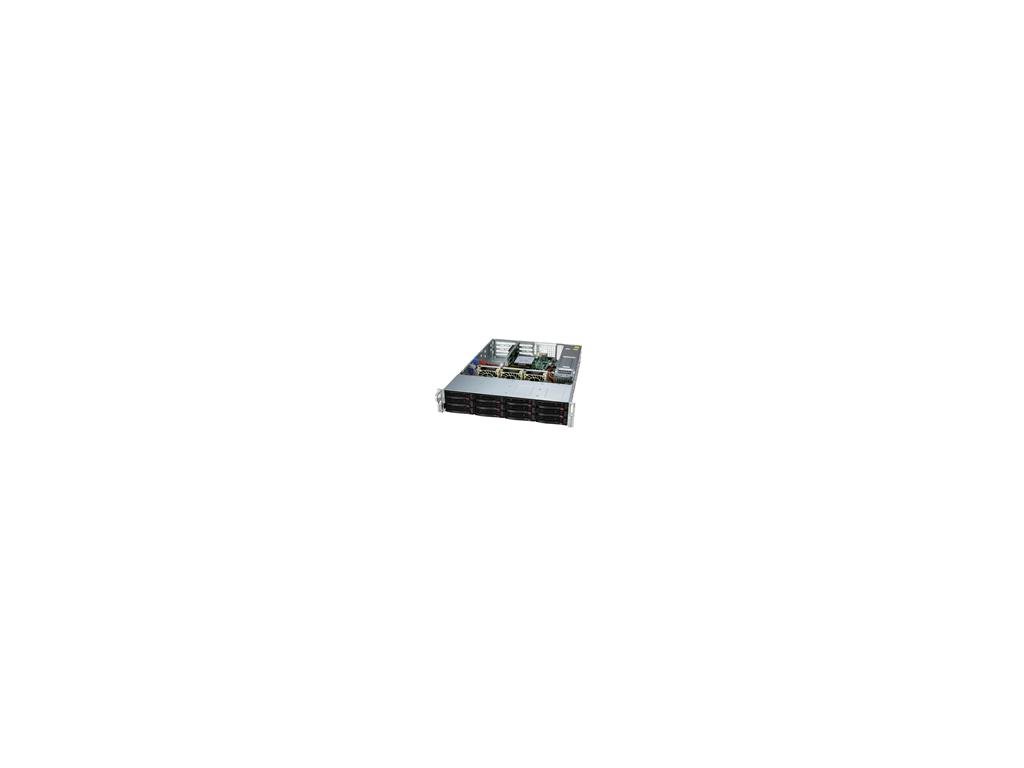

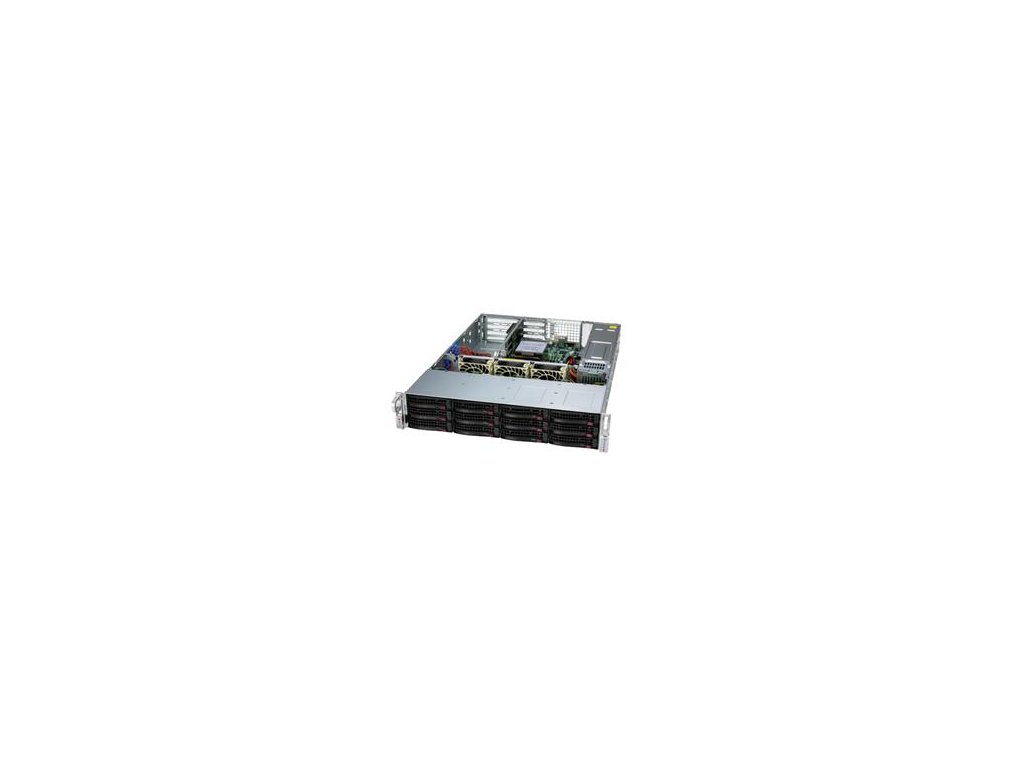

SUPERMICRO WIO A+ Ser 2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots +

Kód: SRAS2015SVWTNRT-A1A

Neohodnoceno

Značka: Supermicro

57 043 Kč 47 143 Kč bez DPH

(2 ks)

Můžeme doručit do: 23.1.2026 Možnosti doručení

Detailní informace

Zobrazit všechny související produkty

Detailní popis produktu

Kód: SRAS2015SVWTNRT-A1A
P/N: AS-2015SV-WTNRT
EAN: 672042896110

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Product SKUs

A+ Server AS -2015SV-WTNRT

Motherboard

Super H13SVW-NT

Processor
CPU	Single processor(s) AMD EPYC™ 8004 Series Processor
Core Count	Up to 64C/128T
Note	Supports up to 225W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width or 2 single-width GPU(s)
Supported GPU	NVIDIA PCIe: T400, RTX 4000 Ada Generation View GPU Options

System Memory
Memory	Slot Count: 6 DIMM slots Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM View Memory Options

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416 View AOC Options
NVMe	View NVMe Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GBASE-T LAN port(s)
USB	4 port(s) (rear)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear)
TPM	1 TPM Onboard/port 80

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!)
Power configurations	1U redundant 800W Titanium AC Power Supply

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-826BTS-R000WNBP4

Dimensions and Weight
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.6" (650 mm)
Package	11.5" (H) x 26.5" (W) x 34" (D)
Weight	Gross Weight: 58 lbs (26.3 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	Black

Front Panel
LED	Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information
Buttons	Power On/Off System Reset

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHFL slot(s) 2 PCIe 5.0 x8 LP slot(s) View AOC Options
M.2	2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 12 bay(s) 12 front hot-swap 3.5" SATA drive bay(s) Option A: Total 12 bay(s) 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe/SATA drive bay(s) 6 front hot-swap 3.5"/2.5" SATA drive bay(s) Option B: Total 12 bay(s) 12 front hot-swap 2.5" SAS drive bay(s) (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) View Drive Options
M.2	2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) View M.2 Options

System Cooling
Fans	3 Heavy duty PWM 80x80x38mm Fan(s)

Power Supply

2x 800W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
AC Input	800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz
+12V	Max: 66A / Min: 0A (100Vac-240Vac) Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
