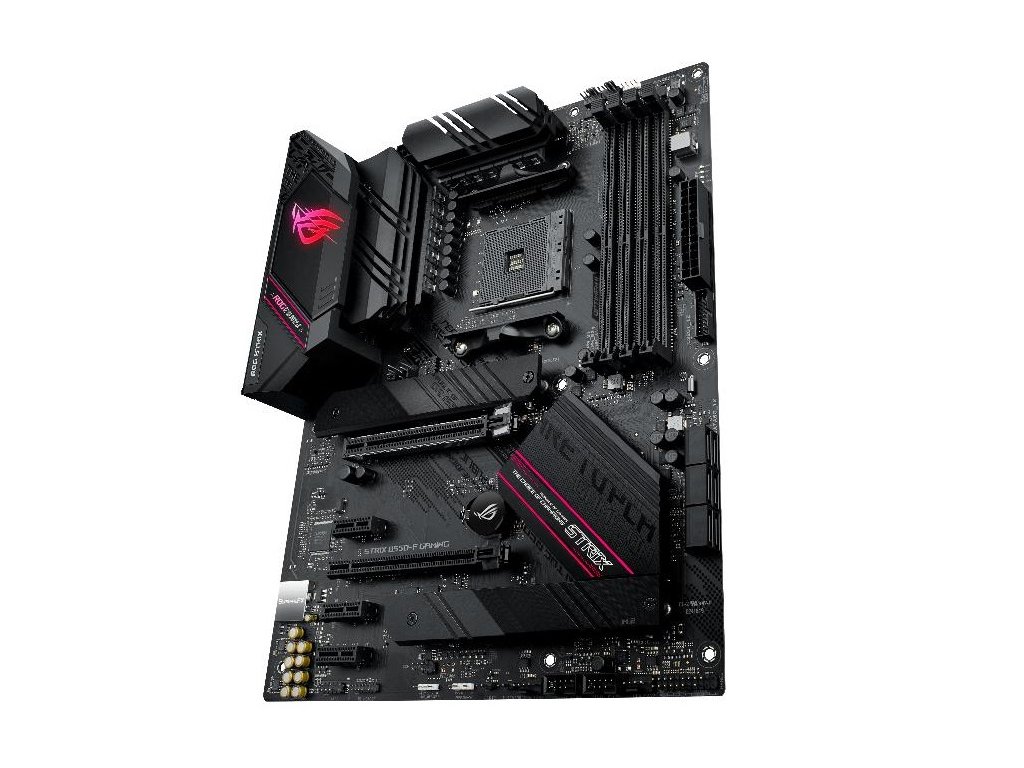

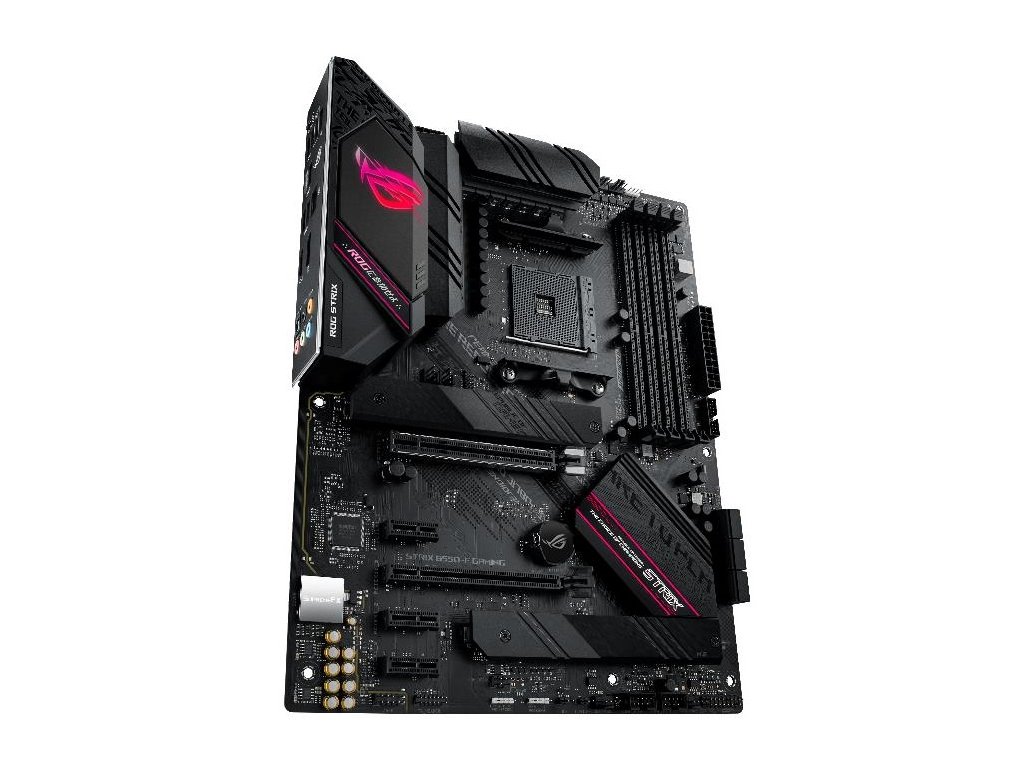

ASUS ROG STRIX B550-F GAMING/AM4/ATX

Detailní popis produktu

Kód: 20070177995
P/N: 90MB14S0-M0EAY0
EAN: 4718017749688

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

Chipset:
AMD B550

Rozměrový formát:
ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory:
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Patice procesoru:
AM4

Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:

3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Next Generation AMD Ryzen PRO Processors - 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU

Grafické výstupy:
Integrated Graphics Processor (na základě procesoru)
1x DisplayPort 1.2
1x HDMI 2.1(4K@60HZ)

Multi GPU:

AMD 2-Way CrossFireX Technology

Zvuková karta:

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Síťová karta:

Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozšiřující sloty:

1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1

RAID řadič:
0, 1, 10

SATA:

6x SATA 6Gb/s port(s)

M.2:

1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

zadní USB porty ( celkem 8 )

2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)
2x USB 2.0 port(s)

přední USB porty ( celkem 6 )

2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)

Interní porty:

1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
1x AAFP connector
2x Aura RGB Strip Header(s)
1x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x System panel(s)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)

Externí porty:

1x Intel® I225-V 2.5Gb Ethernet
1x DisplayPort
1x HDMI
2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4x USB 3.2 Gen 1
2x USB 2.0
1x Optical S/PDIF out
1x BIOS FlashBack™ Button(s)
5x Gold-plated audio jacks

Obsah balení:

User's manual
4x SATA 6Gb/s cable(s)
1x Supporting DVD
1x ROG Strix stickers
1x Cable ties pack(s)
1x Extension cable for Addressable LED
1x ROG Thank you card
1x M.2 SSD screw package(s)
1x M.2 Rubber Package(s)

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce:
