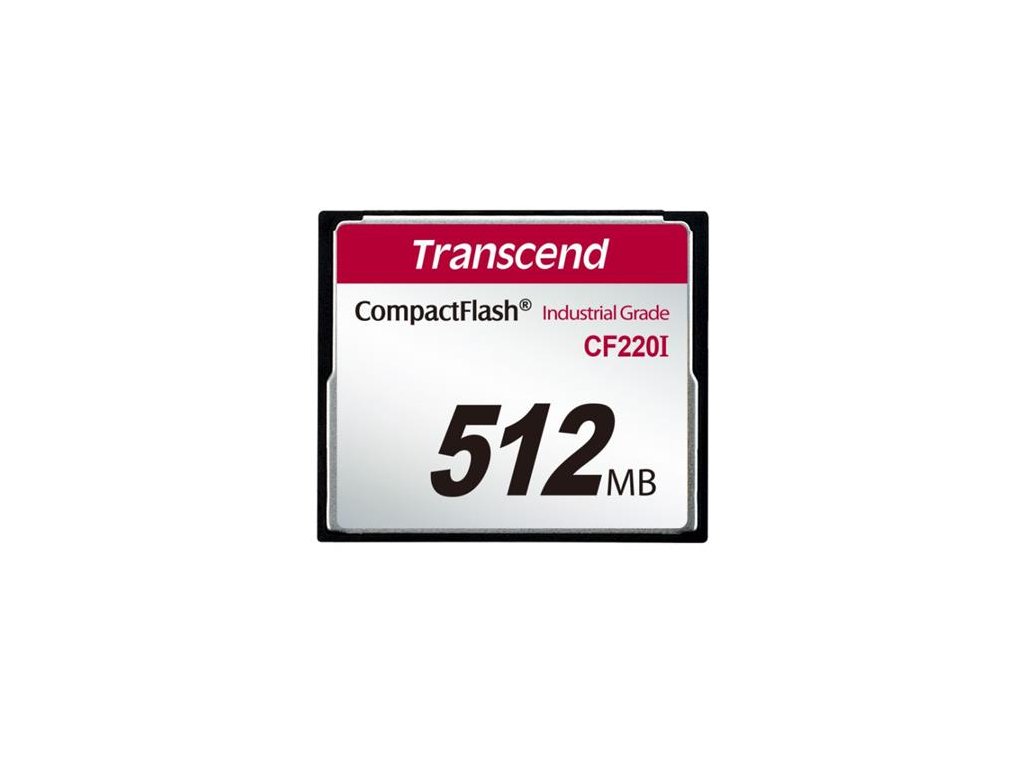

Transcend 512MB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5

Detailní popis produktu

Kód: 775531
P/N: TS512MCF220I
EAN: 0760557831921

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)
Ruggedized and featuring excellent temperature flexibility while delivering top performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.

Firmware Features
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Default)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in BCH ECC (Error Correction Code) functionality
Static Data Refresh
Early Retirement
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command

Appearance
Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count 50 pin
Form Factor
Compact flash card
Storage
Flash Type
SLC NAND flash
Capacity
512 MB/
Operating Environment
Operating Voltage
3.3V±5%
5V±10%
Operating Temperature
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 100°C (212°F)
Humidity 0% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.54 watt(s)
Performance
Read Speed (Max.) up to 56 MB/s
Write Speed (Max.) up to 44 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
