TRANSCEND HSD372M 32GB Half-Slim SSD disk SATA III 6Gb/s, MLC, 530MB/s R, 200MB/s W

Detailní popis produktu

Kód: 779754
P/N: TS32GHSD372M
EAN: 0760557854678

Záruka: 24 měsíců (pro fyzické osoby nepodnikající)

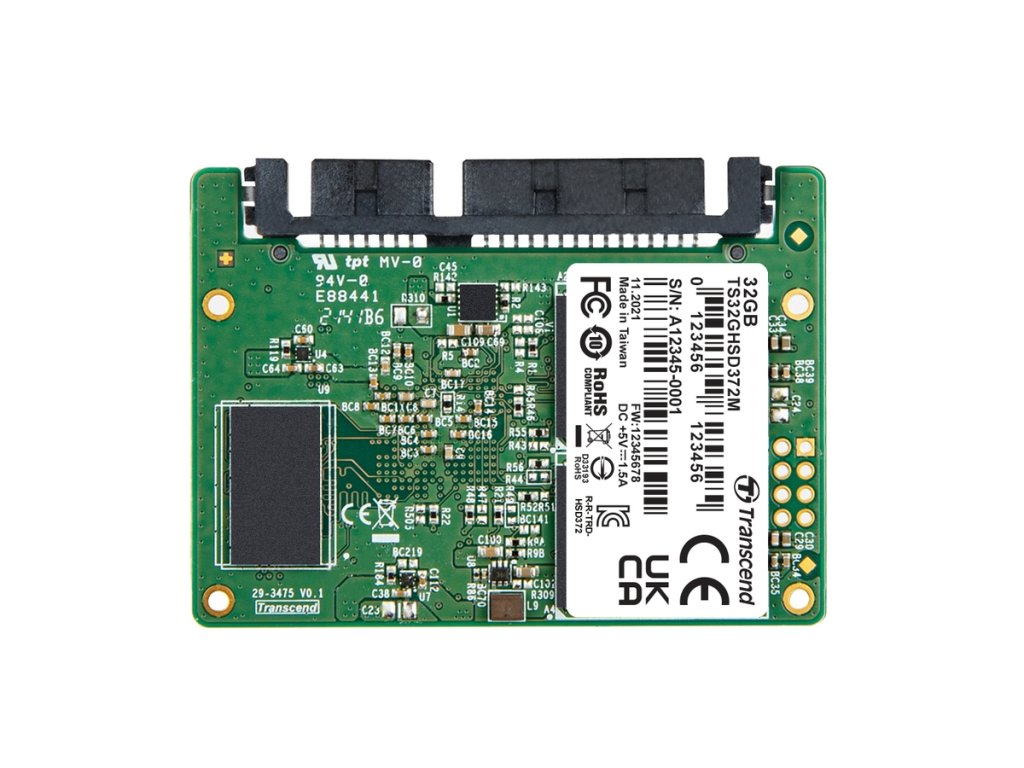

TRANSCEND HSD372M 32GB Half-Slim SSD disk SATA III 6Gb/s, MLC, 530MB/s R, 200MB/s W

Equipped with the SATA III 6Gb/s interface and a powerful controller, Transcend's HSD372M Half-Slim SSDs deliver outstanding transfer speeds in a compact form factor. Following the MO-297 standard set by JEDEC, SATA III 6Gb/s half-slim SSD modules undergo extensive reliability testing to ensure the utmost quality and performance, best suited to read-heavy applications and space-limited mobile devices such as industrial control systems, medical equipment, mobile devices, and POS terminals.

Technologies:
- Corner Bond
- Wide Temperature
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Power Shield (PS)

Firmware Features:
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Hardware Purge (optional)
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode

Hardware Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- MLC NAND flash
- Key components fortified by default with Corner Bond technology
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

Specifications:
Dimensions: 54 mm x 39.8 mm x 4 mm
Weight: 9 g
mSATA Type: MO-297
Pin Count: 7+15 pin
Form Factor: Half-slim
Bus Interface: SATA III 6Gb/s
Flash Type: MLC NAND flash
Capacity: 32 G
Operating Voltage: 5V±5%
Operating Temperature:
- Standard: 0°C ~ 70°C)
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 1.85 watt(s)
Power Consumption (Sleep): 0.38 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 530 MB/s
- Write: up to 200 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 70,000 IOPS
- Write: up to 50,000 IOPS
Mean Time Between Failures (MTBF): 2,500,000 hour(s)
Terabytes Written (TBW): up to 360 TBW
Drive Writes Per Day(DWPD): 2.6 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
